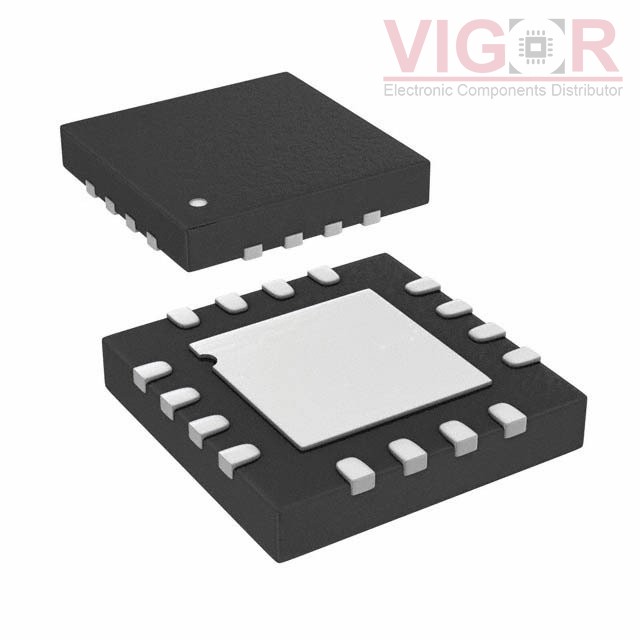

ADG5413BFBCPZ-RL7

Part No :: ADG5413BFBCPZ-RL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3929712

Description: IC SWITCH QUAD SPST BID 16LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5413BFBCPZ-RL7 PDF

Country of origin: -

Date code: -

ADG5413BFBCPZ-RL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPST - NO/NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	11.5Ohm
Channel-to-Channel Matching (ΔRon):	50mOhm
Voltage - Supply, Single (V+):	8V ~ 44V
Voltage - Supply, Dual (V±):	±5V ~ 22V
Switch Time (Ton, Toff) (Max):	500ns, 515ns
-3db Bandwidth:	270MHz
Charge Injection:	-640pC
Channel Capacitance (CS(off), CD(off)):	12pF, 11pF
Current - Leakage (IS(off)) (Max):	500pA
Crosstalk:	-90dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-WQ (4x4)
