TS5A22362YZPR

Part No :: TS5A22362YZPR

Manufacturer: Texas Instruments

VIGOR # :: 3929928

Description: IC SWITCH DUAL SPDT 10DSBGA

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: TS5A22362YZPR PDF

Country of origin: -

Date code: -

TS5A22362YZPR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	740mOhm
Channel-to-Channel Matching (ΔRon):	40mOhm
Voltage - Supply, Single (V+):	2.3V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	80ns, 70ns
-3db Bandwidth:	18.3MHz
Charge Injection:	10pC
Channel Capacitance (CS(off), CD(off)):	70pF
Current - Leakage (IS(off)) (Max):	50nA
Crosstalk:	-78dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

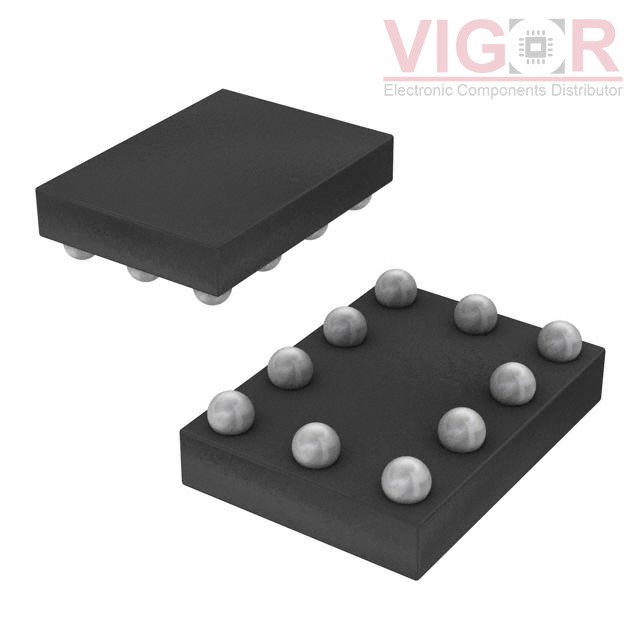

Package / Case:	10-XFBGA, DSBGA
Supplier Device Package:	10-DSBGA

Alternative Products

Part Number	Manufacturer & Description	Compare
TS5A22364DRCR Match 100%	VIGOR TS5A22364 0.65-OHM DUAL SPDT ANA	TS5A22362YZPR vs TS5A22364DRCR
TS5A22362DRCR Match 100%	Texas Instruments IC SWITCH DUAL SPDT 10SON	TS5A22362YZPR vs TS5A22362DRCR
TS5A22364QDGSRQ1 Match 100%	Texas Instruments IC SWITCH DUAL SPDT 10-VSSOP	TS5A22362YZPR vs TS5A22364QDGSRQ1
TS5A22362DRCT-NM Match 100%	VIGOR TS5A22362 2-CHANNEL, 2:1 ANALOG	TS5A22362YZPR vs TS5A22362DRCT-NM
TS5A22362DGSR Match 100%	Texas Instruments IC SWITCH SPDT DUAL 10VSSOP	TS5A22362YZPR vs TS5A22362DGSR
TS5A22364DGSR Match 100%	Texas Instruments IC SWITCH SPDT DUAL 10VSSOP	TS5A22362YZPR vs TS5A22364DGSR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4057

Shipped from

HK warehouse

Expected Shipping Date

Sep 05 - Sep 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.1900~~	~~$1.19~~
3000	~~$0.6380~~	~~$1 914.00~~
6000	~~$0.6072~~	~~$3 643.20~~
15000	~~$0.5852~~	~~$8 778.00~~

Current price of TS5A22362YZPR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
