NLAS4685FCT1

NLAS4685FCT1

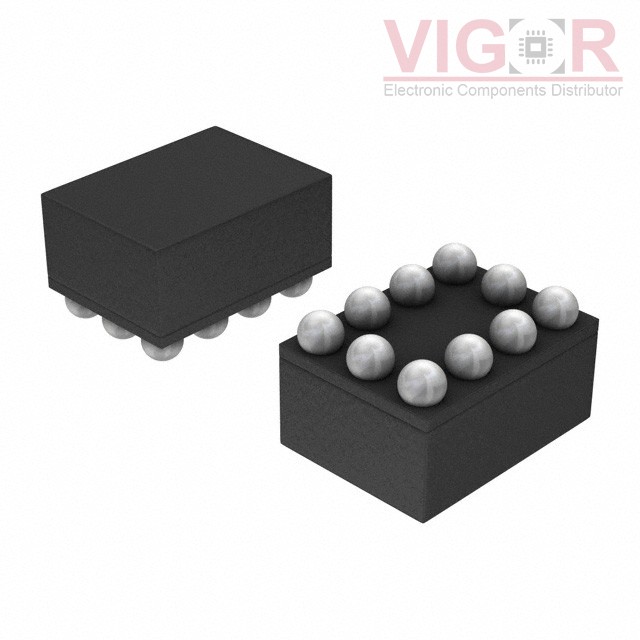

Image is for reference,
please contact us to get the real picture

Part No :

NLAS4685FCT1

Manufacturer
VIGOR
Description
SPDT, 1 CHANNEL, CMOS, PBGA10
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Sep 29 - Oct 03 2025
DataSheet
NLAS4685FCT1 PDF
Availability
138 pieces
Unit Price
$0.47000

Current price of NLAS4685FCT1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLAS4685FCT1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:2
On-State Resistance (Max):800mOhm
Channel-to-Channel Matching (ΔRon):60mOhm
Voltage - Supply, Single (V+):1.8V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):30ns, 25ns
-3db Bandwidth:11.5MHz
Charge Injection:20pC
Channel Capacitance (CS(off), CD(off)):208pF, 102pF
Current - Leakage (IS(off)) (Max):1µA
Crosstalk:-81dB @ 100kHz
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:10-UFBGA, FCBGA
Supplier Device Package:10-Microbump (1.97x1.47)
