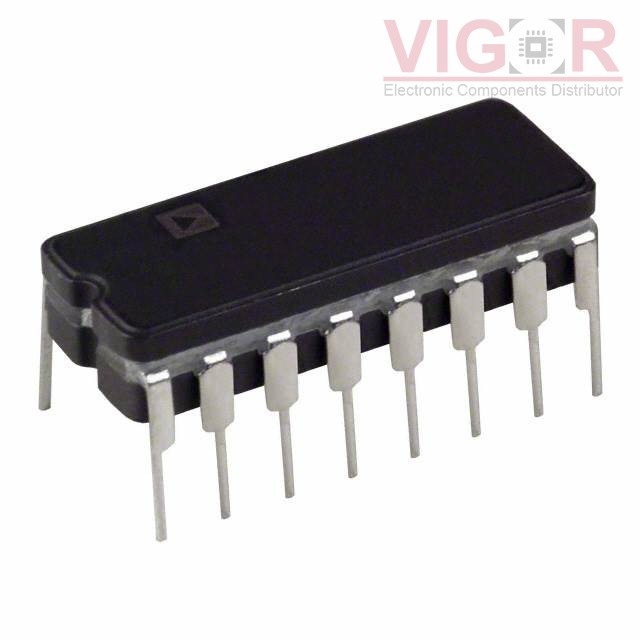

ADG509ATQ

Part No :: ADG509ATQ

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3930356

Description: IC MULTIPLEXER DUAL 4X1 16CDIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG509ATQ PDF

Current price of ADG509ATQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADG509ATQ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	450Ohm
Channel-to-Channel Matching (ΔRon):	22.5Ohm
Voltage - Supply, Single (V+):	10.8V ~ 16.5V
Voltage - Supply, Dual (V±):	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max):	300ns, 300ns
-3db Bandwidth:	-
Charge Injection:	4pC
Channel Capacitance (CS(off), CD(off)):	5pF, 11pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-CDIP (0.300", 7.62mm)
Supplier Device Package:	16-CDIP
