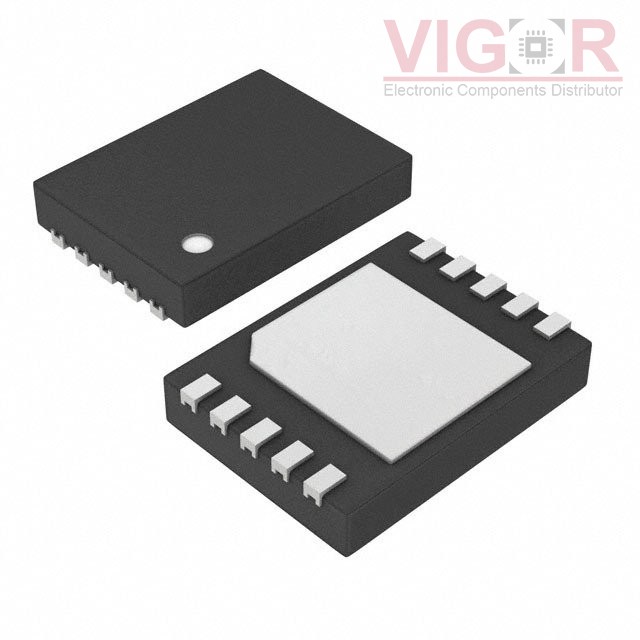

MAX14689AETB+T

Part No :: MAX14689AETB+T

Manufacturer: Maxim Integrated

VIGOR # :: 3930394

Description: IC SWITCH DPDT SINGLE 10TDFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MAX14689AETB+T PDF

Country of origin: -

Date code: -

MAX14689AETB+T Specifications

Type	Description
Series:	Beyond-the-Rails™
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Circuit:	DPDT
Multiplexer/Demultiplexer Circuit:	2:2
Number of Circuits:	1
On-State Resistance (Max):	450mOhm
Channel-to-Channel Matching (ΔRon):	5mOhm
Voltage - Supply, Single (V+):	1.6V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	200µs, 30µs
-3db Bandwidth:	110MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	25pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-100dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-WFDFN Exposed Pad
Supplier Device Package:	10-TDFN (2.5x2.0)
