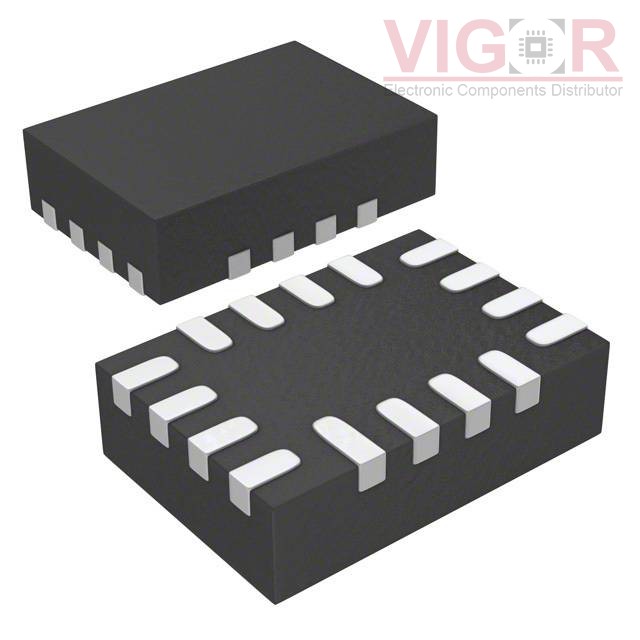

DG509BEN-T1-GE4

Part No :: DG509BEN-T1-GE4

Manufacturer: Vishay / Siliconix

VIGOR # :: 3930488

Description: IC MUX ANALOG SINGLE 8CH 16QFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG509BEN-T1-GE4 PDF

Country of origin: -

Date code: -

DG509BEN-T1-GE4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	380Ohm
Channel-to-Channel Matching (ΔRon):	10Ohm
Voltage - Supply, Single (V+):	12V
Voltage - Supply, Dual (V±):	±5V ~ 20V
Switch Time (Ton, Toff) (Max):	250ns, 240ns
-3db Bandwidth:	250MHz
Charge Injection:	2pC
Channel Capacitance (CS(off), CD(off)):	3pF, 8pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-88dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WFQFN
Supplier Device Package:	16-miniQFN (1.8x2.6)
