HI3-0509A-5Z

Part No :: HI3-0509A-5Z

Manufacturer: Intersil (Renesas Electronics America)

VIGOR # :: 3930588

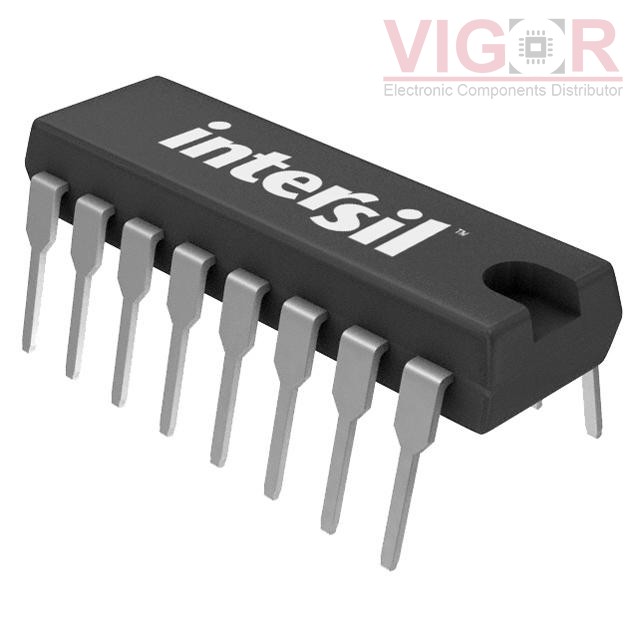

Description: IC MULTIPLEXER DUAL 4X1 16DIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: HI3-0509A-5Z PDF

Country of origin: -

Date code: -

HI3-0509A-5Z Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	1.8kOhm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	-
Voltage - Supply, Dual (V±):	±15V
Switch Time (Ton, Toff) (Max):	300ns, 300ns (Typ)
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	10pF, 12pF
Current - Leakage (IS(off)) (Max):	30pA (Typ)
Crosstalk:	-
Operating Temperature:	0°C ~ 75°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-PDIP
