ADG201AKPZ-REEL

ADG201AKPZ-REEL

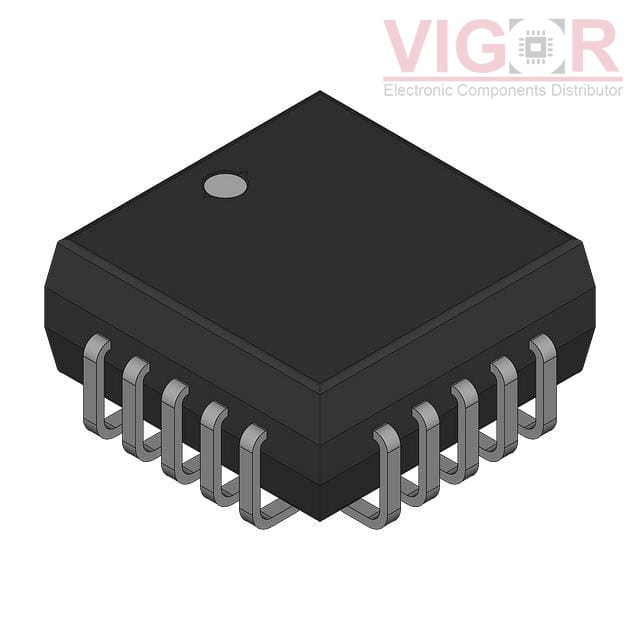

Image is for reference,
please contact us to get the real picture

Part No :

ADG201AKPZ-REEL

Manufacturer
VIGOR
Description
SPST, 1 FUNC, 1 CHANNEL, CMOS, P
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Sep 29 - Oct 03 2025
DataSheet
ADG201AKPZ-REEL PDF
Availability
4000 pieces
Unit Price
$3.11000

Current price of ADG201AKPZ-REEL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADG201AKPZ-REEL Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Switch Circuit:SPST - NC
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):90Ohm
Channel-to-Channel Matching (ΔRon):4.5Ohm
Voltage - Supply, Single (V+):10V ~ 15V
Voltage - Supply, Dual (V±):±10V ~ 15V
Switch Time (Ton, Toff) (Max):300ns, 250ns
-3db Bandwidth:-
Charge Injection:20pC
Channel Capacitance (CS(off), CD(off)):5pF
Current - Leakage (IS(off)) (Max):2nA
Crosstalk:-80dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:20-LCC (J-Lead)
Supplier Device Package:20-PLCC (9x9)
