NC7WB66K8X

NC7WB66K8X

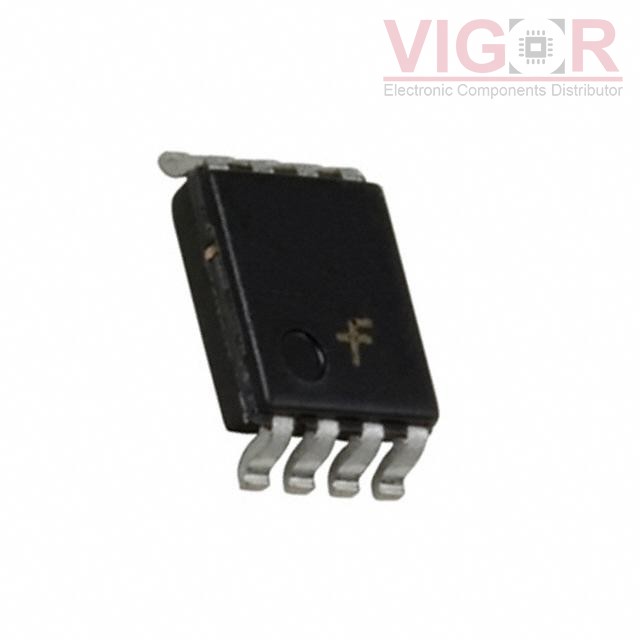

Image is for reference,
please contact us to get the real picture

Part No :

NC7WB66K8X

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC SWITCH DUAL SPST-NO US8
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Oct 11 - Oct 15 2025
DataSheet
NC7WB66K8X PDF
Availability
551 pieces
Unit Price
$0.45000

Current price of NC7WB66K8X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NC7WB66K8X Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:2
On-State Resistance (Max):10Ohm
Channel-to-Channel Matching (ΔRon):200mOhm
Voltage - Supply, Single (V+):1.65V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):3.2ns, 4.1ns
-3db Bandwidth:300MHz
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):5pF
Current - Leakage (IS(off)) (Max):100nA
Crosstalk:-70dB @ 10MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package:US8
