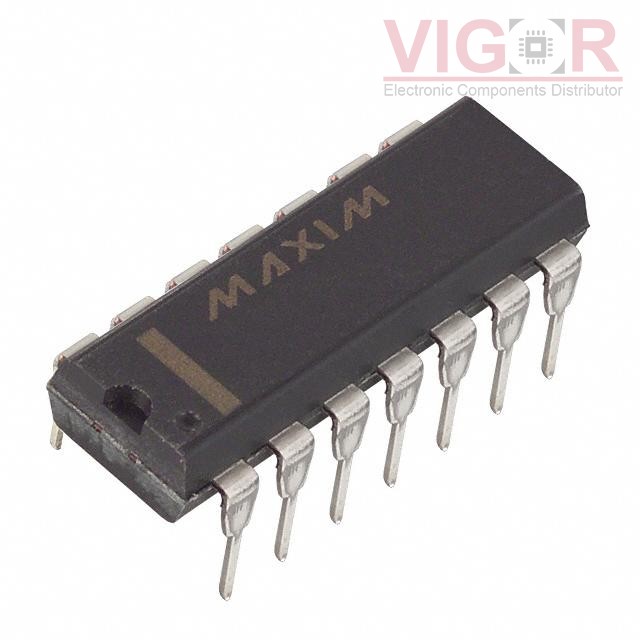

MAX4630EPD

Part No :: MAX4630EPD

Manufacturer: Maxim Integrated

VIGOR # :: 4921096

Description: IC SW QUAD ANLG CMOS SPST 14-DIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MAX4630EPD PDF

Country of origin: -

Date code: -

MAX4630EPD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	SPST - NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	70Ohm
Channel-to-Channel Matching (ΔRon):	500mOhm
Voltage - Supply, Single (V+):	2V ~ 12V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	150ns, 80ns
-3db Bandwidth:	300MHz
Charge Injection:	5pC
Channel Capacitance (CS(off), CD(off)):	20pF, 12pF
Current - Leakage (IS(off)) (Max):	500pA
Crosstalk:	-90dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	14-DIP (0.300", 7.62mm)
Supplier Device Package:	14-PDIP
