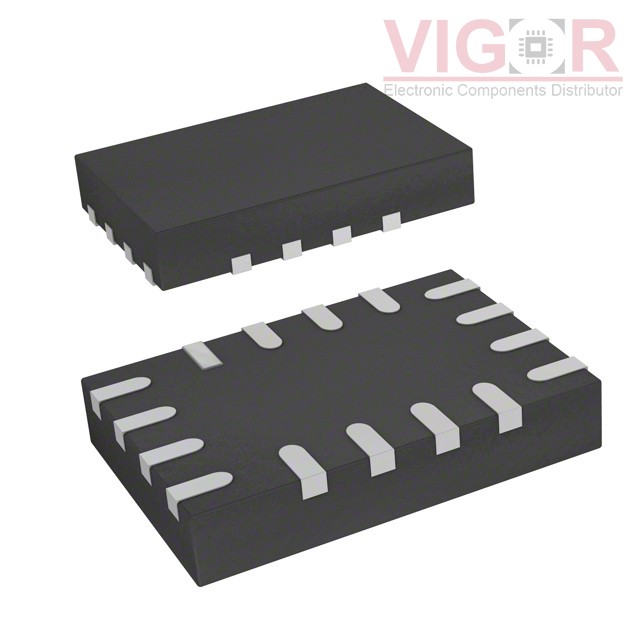

STG3699BVTR

Part No :: STG3699BVTR

Manufacturer: STMicroelectronics

VIGOR # :: 4921205

Description: IC SWITCH QUAD SPDT 16QFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: STG3699BVTR PDF

Country of origin: -

Date code: -

STG3699BVTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	4
On-State Resistance (Max):	500mOhm
Channel-to-Channel Matching (ΔRon):	150mOhm
Voltage - Supply, Single (V+):	1.65V ~ 4.3V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	55ns, 30ns
-3db Bandwidth:	40MHz
Charge Injection:	57pC
Channel Capacitance (CS(off), CD(off)):	5pF
Current - Leakage (IS(off)) (Max):	20nA
Crosstalk:	-72dB @ 100kHz
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-UFQFN
Supplier Device Package:	16-QFN (2.6x1.8)

Alternative Products

Part Number	Manufacturer & Description	Compare
CD4051BCMTC Match 100%	VIGOR SINGLE-ENDED MUX, 8 CHANNEL	STG3699BVTR vs CD4051BCMTC
CD4053BCMX Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX TRIPLE 2X1 16SOIC	STG3699BVTR vs CD4053BCMX
CD4053BCSJX Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX TRIPLE 2X1 16SOP	STG3699BVTR vs CD4053BCSJX
CD4051BCN Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX 8X1 16DIP	STG3699BVTR vs CD4051BCN
CD4053BCM Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX TRIPLE 2X1 16SOIC	STG3699BVTR vs CD4053BCM
CD4052BCMX Match 100%	Sanyo Semiconductor/ON Semiconductor IC MUX/DEMUX DUAL 4X1 16SOIC	STG3699BVTR vs CD4052BCMX
