MAX14724EWP+T

Part No :: MAX14724EWP+T

Manufacturer: Maxim Integrated

VIGOR # :: 4921271

Description: IC MUX 8:4 3OHM 20WLP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MAX14724EWP+T PDF

Country of origin: -

Date code: -

MAX14724EWP+T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	8:4
Number of Circuits:	1
On-State Resistance (Max):	3Ohm
Channel-to-Channel Matching (ΔRon):	500mOhm
Voltage - Supply, Single (V+):	1.6V ~ 5.5V
Voltage - Supply, Dual (V±):	±5V
Switch Time (Ton, Toff) (Max):	2µs, 600ns (Typ)
-3db Bandwidth:	50MHz
Charge Injection:	-15pC
Channel Capacitance (CS(off), CD(off)):	50pF, 85pF
Current - Leakage (IS(off)) (Max):	250nA
Crosstalk:	-65dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

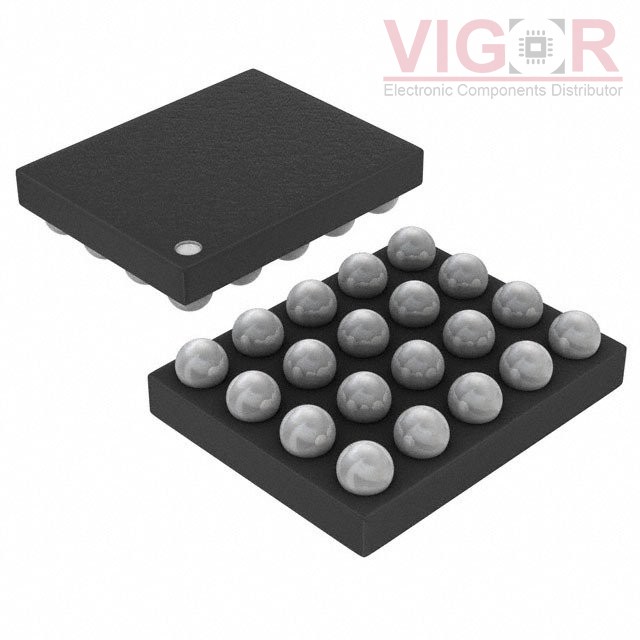

Package / Case:	20-WFBGA, WLBGA
Supplier Device Package:	20-WLP (1.63x2.03)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74AHC4066DGVR Match 100%	VIGOR SN74AHC4066 QUADRUPLE BILATERAL	MAX14724EWP+T vs SN74AHC4066DGVR
FSA2259UMX Match 100%	Sanyo Semiconductor/ON Semiconductor IC SWITCH DUAL SPDT 10UMLP	MAX14724EWP+T vs FSA2259UMX
SN74AUC1G66DCKRE4 Match 100%	Texas Instruments IC SWITCH 1X1 SC70-5	MAX14724EWP+T vs SN74AUC1G66DCKRE4
AOZ6238QI Match 100%	Alpha and Omega Semiconductor, Inc. IC ANLG SWITCH DUAL SPDT 10QFN	MAX14724EWP+T vs AOZ6238QI
MAX14724ETP+T Match 100%	Maxim Integrated IC MUX 8:4 3OHM 20TQFN	MAX14724EWP+T vs MAX14724ETP+T
MAX14724ETP+ Match 100%	Maxim Integrated IC MUX 8:4 3OHM 20TQFN	MAX14724EWP+T vs MAX14724ETP+

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1446

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MAX14724EWP+T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
