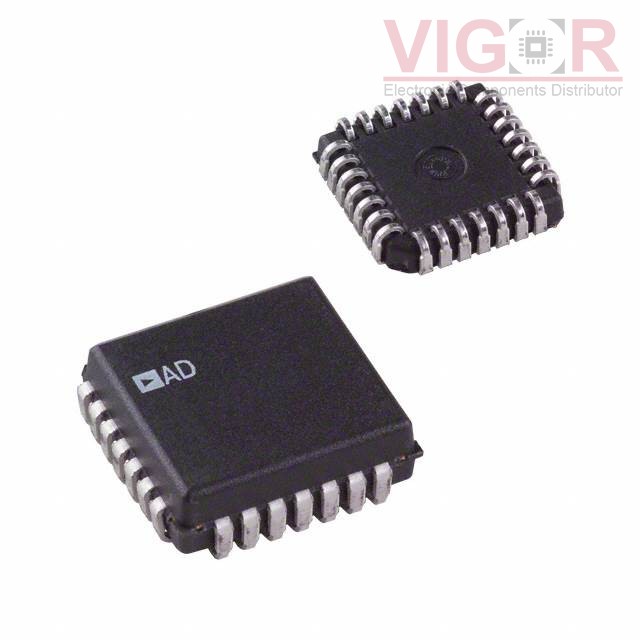

ADG506AKP-REEL

Part No :: ADG506AKP-REEL

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 4921292

Description: IC MULTIPLEXER 16X1 28PLCC

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG506AKP-REEL PDF

Country of origin: -

Date code: -

ADG506AKP-REEL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	16:1
Number of Circuits:	1
On-State Resistance (Max):	300Ohm
Channel-to-Channel Matching (ΔRon):	15Ohm
Voltage - Supply, Single (V+):	10.8V ~ 16.5V
Voltage - Supply, Dual (V±):	±10.8V ~ 16.5V
Switch Time (Ton, Toff) (Max):	300ns, 300ns
-3db Bandwidth:	-
Charge Injection:	4pC
Channel Capacitance (CS(off), CD(off)):	5pF, 44pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	28-LCC (J-Lead)
Supplier Device Package:	28-PLCC (11.51x11.51)
