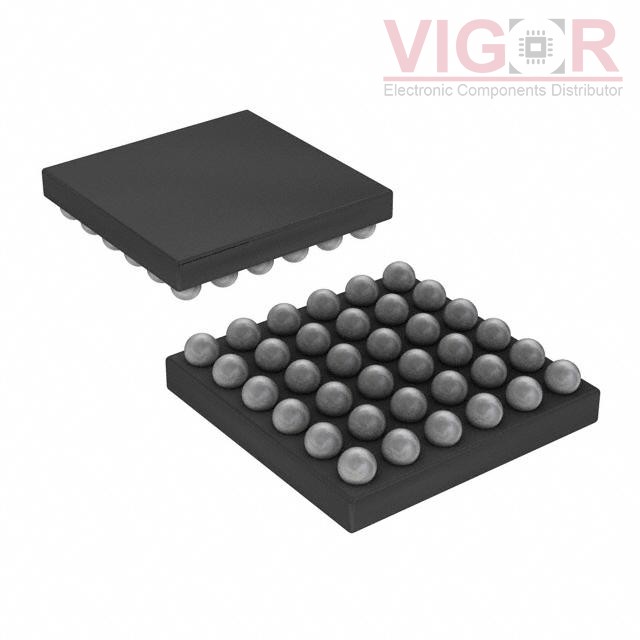

MAX4760AEBX+T

Part No :: MAX4760AEBX+T

Manufacturer: Maxim Integrated

VIGOR # :: 4921443

Description: IC SWITCH QUAD DPDT 36UCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MAX4760AEBX+T PDF

Country of origin: -

Date code: -

MAX4760AEBX+T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	DPDT
Multiplexer/Demultiplexer Circuit:	2:2
Number of Circuits:	4
On-State Resistance (Max):	3.5Ohm
Channel-to-Channel Matching (ΔRon):	200mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	800ns, 800ns
-3db Bandwidth:	150MHz
Charge Injection:	15pC
Channel Capacitance (CS(off), CD(off)):	25pF
Current - Leakage (IS(off)) (Max):	5nA
Crosstalk:	-95dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	36-WFBGA, CSPBGA
Supplier Device Package:	36-UCSP (3x3)

Alternative Products

Part Number	Manufacturer & Description	Compare
PI5A4157TAEX Match 63%	Zetex Semiconductors (Diodes Inc.) IC SWITCH SPDT 0.8 OHM 6-SOT23	MAX4760AEBX+T vs PI5A4157TAEX
DG1413EEN-T1-GE4 Match 100%	Vishay / Siliconix IC SWITCH SPST QUAD 16QFN	MAX4760AEBX+T vs DG1413EEN-T1-GE4
M74HCT4066ADTR2G Match 63%	VIGOR SPST	MAX4760AEBX+T vs M74HCT4066ADTR2G
MC74HCT4066ADG Match 63%	Sanyo Semiconductor/ON Semiconductor IC SWITCH 4 X SPST 14SOIC	MAX4760AEBX+T vs MC74HCT4066ADG
PI5A4157CEX Match 63%	Zetex Semiconductors (Diodes Inc.) IC SWITCH SINGLE SPDT SC70-6	MAX4760AEBX+T vs PI5A4157CEX
TS5A3167DBVRE4 Match 100%	Texas Instruments IC SWITCH SPST SOT23-5	MAX4760AEBX+T vs TS5A3167DBVRE4

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5067

Shipped from

HK warehouse

Expected Shipping Date

Nov 01 - Nov 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MAX4760AEBX+T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
