MAX4760EBX+

Part No :: MAX4760EBX+

Manufacturer: Maxim Integrated

VIGOR # :: 4921724

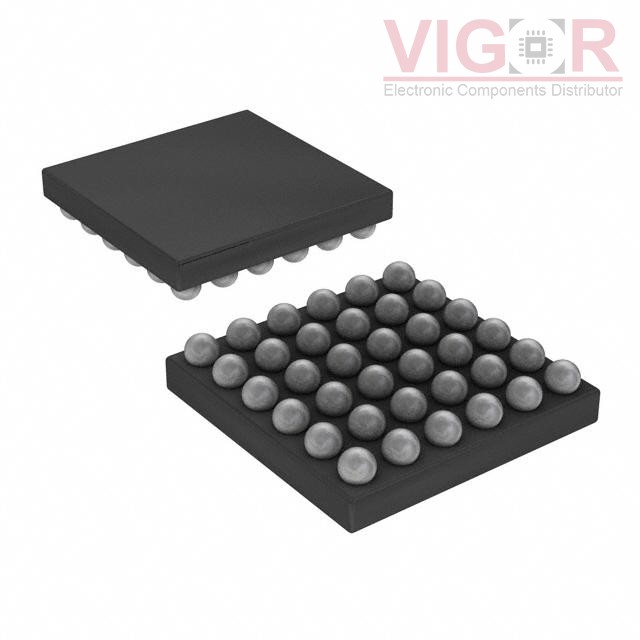

Description: IC SWITCH QUAD DPDT 36UCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MAX4760EBX+ PDF

Country of origin: -

Date code: -

MAX4760EBX+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	DPDT
Multiplexer/Demultiplexer Circuit:	2:2
Number of Circuits:	4
On-State Resistance (Max):	3.5Ohm
Channel-to-Channel Matching (ΔRon):	200mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	140ns, 50ns
-3db Bandwidth:	150MHz
Charge Injection:	15pC
Channel Capacitance (CS(off), CD(off)):	25pF
Current - Leakage (IS(off)) (Max):	5nA
Crosstalk:	-95dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	36-WFBGA, CSPBGA
Supplier Device Package:	36-UCSP (3x3)
