STG3684ADTR

Part No :: STG3684ADTR

Manufacturer: STMicroelectronics

VIGOR # :: 4922010

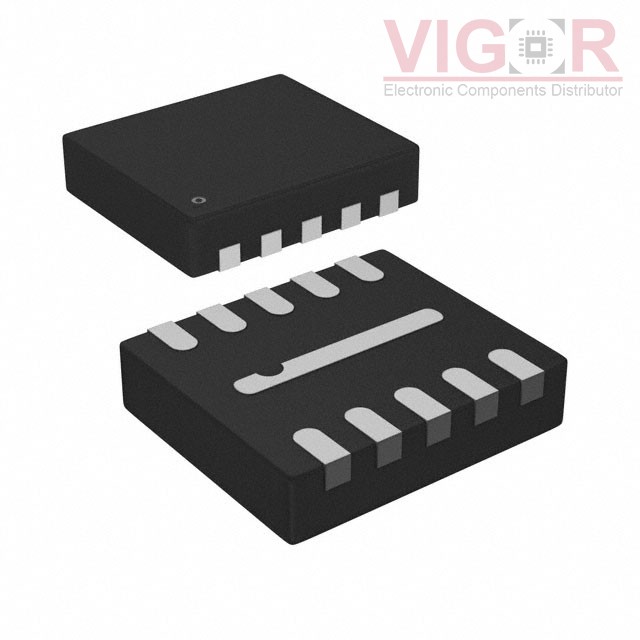

Description: IC SWITCH DUAL SPDT 10UFDFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: STG3684ADTR PDF

Country of origin: -

Date code: -

STG3684ADTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	500mOhm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	1.65V ~ 4.3V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	55ns, 30ns
-3db Bandwidth:	55MHz
Charge Injection:	49pC
Channel Capacitance (CS(off), CD(off)):	5pF
Current - Leakage (IS(off)) (Max):	20nA
Crosstalk:	-72dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-UFDFN Exposed Pad
Supplier Device Package:	10-DFN (2.3x2.0)
