DG309BDQ-T1

Part No :: DG309BDQ-T1

Manufacturer: Vishay / Siliconix

VIGOR # :: 4922156

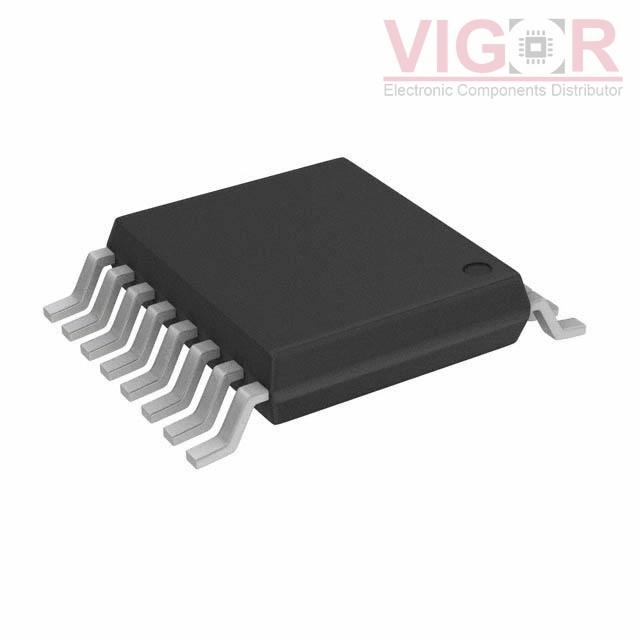

Description: IC SWITCH QUAD SPST 16TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG309BDQ-T1 PDF

Country of origin: -

Date code: -

DG309BDQ-T1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SPST - NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	85Ohm
Channel-to-Channel Matching (ΔRon):	1.7Ohm
Voltage - Supply, Single (V+):	4V ~ 44V
Voltage - Supply, Dual (V±):	±4V ~ 22V
Switch Time (Ton, Toff) (Max):	200ns, 150ns
-3db Bandwidth:	-
Charge Injection:	1pC
Channel Capacitance (CS(off), CD(off)):	5pF, 5pF
Current - Leakage (IS(off)) (Max):	500pA
Crosstalk:	-95dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOP
