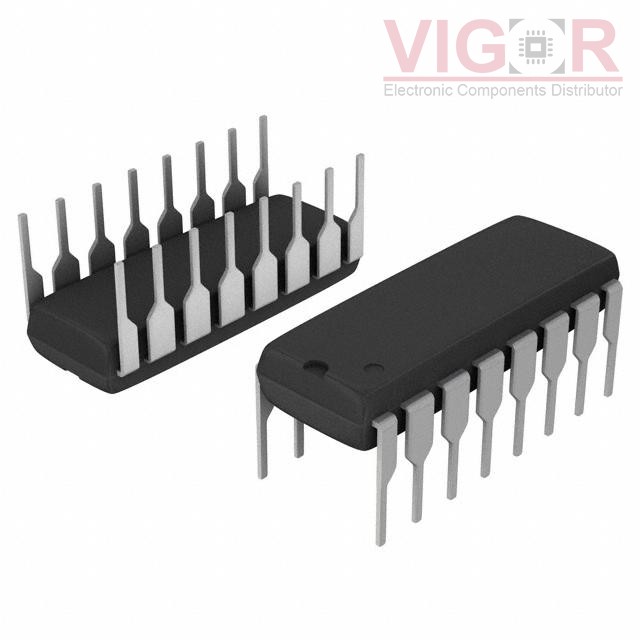

DG643DJ

Part No :: DG643DJ

Manufacturer: Vishay / Siliconix

VIGOR # :: 4922261

Description: IC VIDEO SWITCH SPDT 16DIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG643DJ PDF

Country of origin: -

Date code: -

DG643DJ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	15Ohm
Channel-to-Channel Matching (ΔRon):	1Ohm
Voltage - Supply, Single (V+):	3V ~ 15V
Voltage - Supply, Dual (V±):	±3V ~ 15V
Switch Time (Ton, Toff) (Max):	70ns, 50ns
-3db Bandwidth:	500MHz
Charge Injection:	19pC
Channel Capacitance (CS(off), CD(off)):	12pF, 12pF
Current - Leakage (IS(off)) (Max):	10nA
Crosstalk:	-87dB @ 5MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-PDIP

Alternative Products

Part Number	Manufacturer & Description	Compare
DG641DY-T1-E3 Match 100%	Vishay / Siliconix IC VIDEO SWITCH SPST 16SOIC	DG643DJ vs DG641DY-T1-E3
DG612DY Match 100%	Vishay / Siliconix IC SWITCH QUAD SPST 16-SOIC	DG643DJ vs DG612DY
DG641DY-T1 Match 100%	Vishay / Siliconix IC VIDEO SWITCH SPST 16SOIC	DG643DJ vs DG641DY-T1
DG611DJ Match 100%	Vishay / Siliconix IC SWITCH QUAD SPST 16-DIP	DG643DJ vs DG611DJ
DG641DJ-E3 Match 100%	Vishay / Siliconix IC VIDEO SWITCH SPDT 16DIP	DG643DJ vs DG641DJ-E3
DG611DY-E3 Match 100%	Vishay / Siliconix IC SWITCH QUAD SPST 16-SOIC	DG643DJ vs DG611DY-E3
