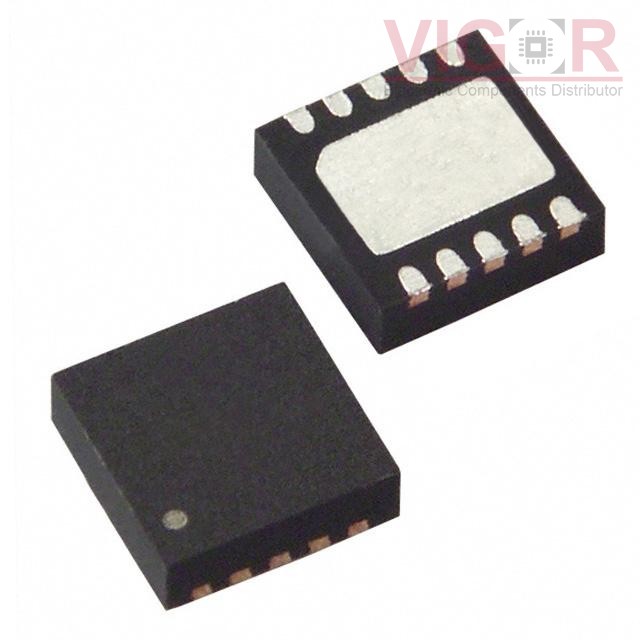

DG2518DN-T1-E4

Part No :: DG2518DN-T1-E4

Manufacturer: Vishay / Siliconix

VIGOR # :: 4922396

Description: IC SWITCH DUAL SPDT 10DFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG2518DN-T1-E4 PDF

Country of origin: -

Date code: -

DG2518DN-T1-E4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	4Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	25ns, 20ns
-3db Bandwidth:	242MHz
Charge Injection:	2pC
Channel Capacitance (CS(off), CD(off)):	8pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-73dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-VFDFN Exposed Pad
Supplier Device Package:	10-DFN (3x3)

Alternative Products

Part Number	Manufacturer & Description	Compare
ADG5423BRMZ-RL7 Match 95%	VIGOR SPST, 2 FUNC, 1 CHANNEL, CMOS, P	DG2518DN-T1-E4 vs ADG5423BRMZ-RL7
ADG5423BCPZ-RL7 Match 95%	Linear Technology (Analog Devices, Inc.) IC ANLG SWITCH DUAL SPST 10MSOP	DG2518DN-T1-E4 vs ADG5423BCPZ-RL7
FSA3157BL6X Match 86%	VIGOR LOW VOLTAGE SPDT ANALOG SWITCH O	DG2518DN-T1-E4 vs FSA3157BL6X
NC7SBU3157P6X Match 86%	Sanyo Semiconductor/ON Semiconductor IC ANALOG SWITCH SPDT SC70-6	DG2518DN-T1-E4 vs NC7SBU3157P6X
DG2517DQ-T1-E3 Match 100%	Vishay / Siliconix IC SWITCH DUAL SPDT 10MSOP	DG2518DN-T1-E4 vs DG2517DQ-T1-E3
DG2518DQ-T1-E3 Match 100%	Vishay / Siliconix IC SWITCH DUAL SPDT 10MSOP	DG2518DN-T1-E4 vs DG2518DQ-T1-E3
