DG409LDQ-E3

Part No :: DG409LDQ-E3

Manufacturer: Vishay / Siliconix

VIGOR # :: 4922598

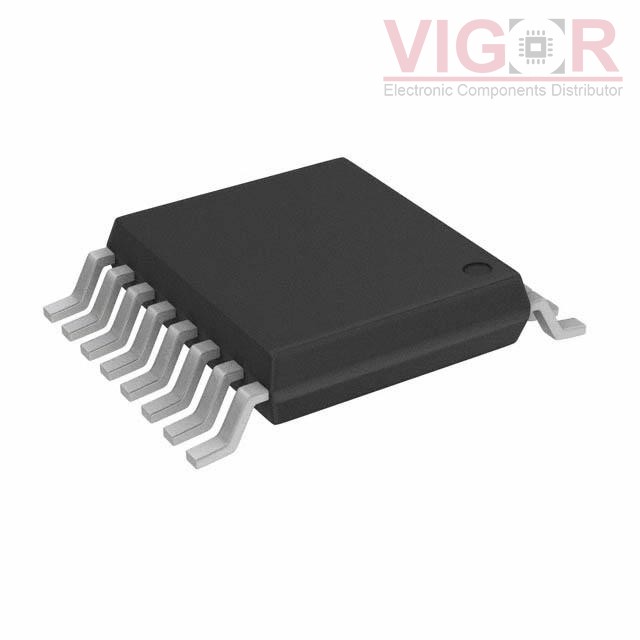

Description: IC MUX CMOS ANG DUAL 8CH 16TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG409LDQ-E3 PDF

Country of origin: -

Date code: -

DG409LDQ-E3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	29Ohm
Channel-to-Channel Matching (ΔRon):	1Ohm
Voltage - Supply, Single (V+):	2V ~ 12V
Voltage - Supply, Dual (V±):	±3V ~ 6V
Switch Time (Ton, Toff) (Max):	55ns, 25ns
-3db Bandwidth:	-
Charge Injection:	1pC
Channel Capacitance (CS(off), CD(off)):	7pF, 20pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-82dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOP
