PI5A100WE

Part No :: PI5A100WE

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4922737

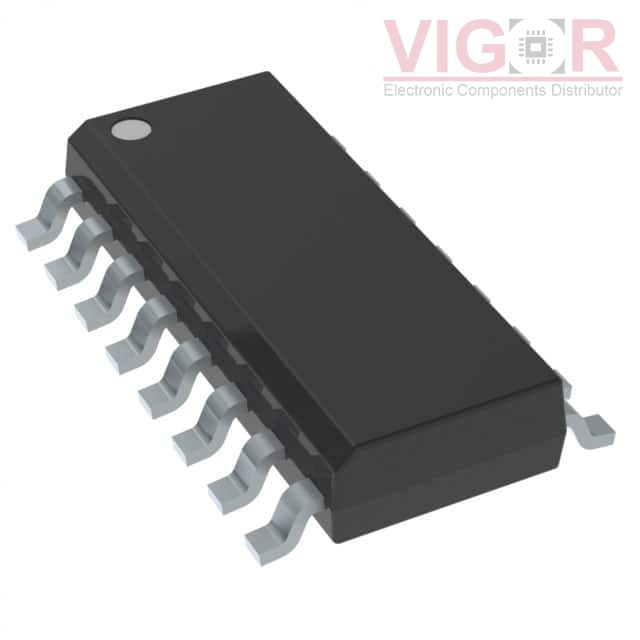

Description: IC SWITCH QUAD SPDT 16SOIC

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: PI5A100WE PDF

Country of origin: -

Date code: -

PI5A100WE Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Discontinued at Digi-Key
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	4
On-State Resistance (Max):	10Ohm
Channel-to-Channel Matching (ΔRon):	800mOhm
Voltage - Supply, Single (V+):	2V ~ 6V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	15ns, 7ns
-3db Bandwidth:	230MHz
Charge Injection:	10pC (Max)
Channel Capacitance (CS(off), CD(off)):	8pF, 14pF
Current - Leakage (IS(off)) (Max):	10µA (Typ)
Crosstalk:	-100dB @ 10MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC
