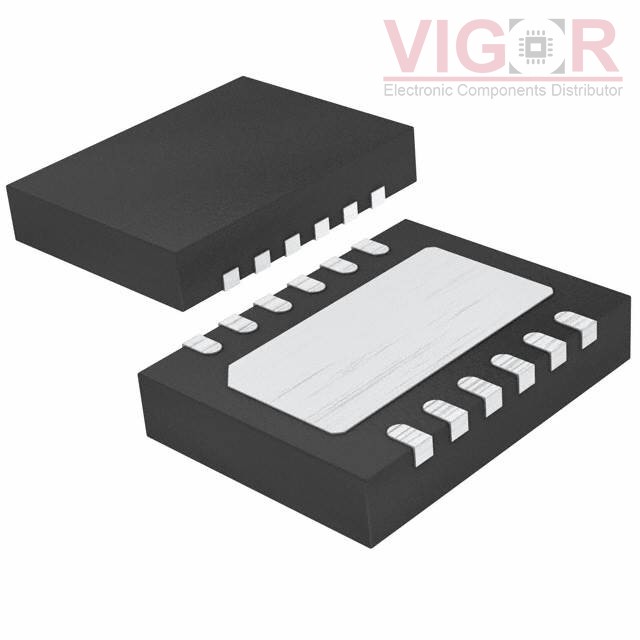

PI3A3160CZGEX

Part No :: PI3A3160CZGEX

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4922905

Description: IC SWITCH DUAL SPDT 12TDFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: PI3A3160CZGEX PDF

Country of origin: -

Date code: -

PI3A3160CZGEX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	1.3Ohm
Channel-to-Channel Matching (ΔRon):	150mOhm (Max)
Voltage - Supply, Single (V+):	1.5V ~ 4.2V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	-
-3db Bandwidth:	65MHz
Charge Injection:	110pC
Channel Capacitance (CS(off), CD(off)):	35pF
Current - Leakage (IS(off)) (Max):	2µA
Crosstalk:	-50dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	12-WFDFN Exposed Pad
Supplier Device Package:	12-TDFN (3.5x3)

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX4678EPE+ Match 98%	Maxim Integrated IC SWITCH QUAD SPST 16DIP	PI3A3160CZGEX vs MAX4678EPE+
MAX4677EUE+ Match 98%	Maxim Integrated IC SWITCH QUAD SPST 16TSSOP	PI3A3160CZGEX vs MAX4677EUE+
MAX4679EUE+T Match 98%	Maxim Integrated IC SWITCH QUAD SPST 16TSSOP	PI3A3160CZGEX vs MAX4679EUE+T
MAX4679EUE+ Match 98%	Maxim Integrated IC SWITCH QUAD SPST 16TSSOP	PI3A3160CZGEX vs MAX4679EUE+
NLV14066BDR2G Match 63%	VIGOR SPST, 4 FUNC, CMOS, PDSO14	PI3A3160CZGEX vs NLV14066BDR2G
ADG1517BCPZ-REEL7 Match 100%	VIGOR SPST, 1 FUNC, 1 CHANNEL, CMOS, P	PI3A3160CZGEX vs ADG1517BCPZ-REEL7
