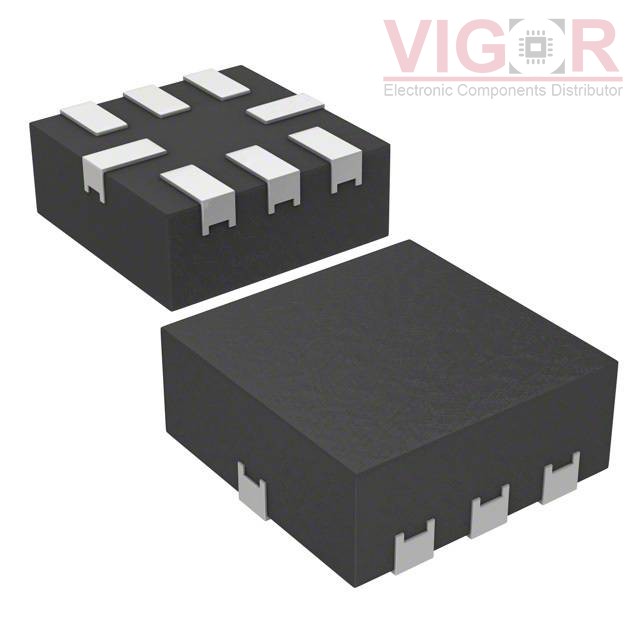

DG2522DN-T1-E4

Part No :: DG2522DN-T1-E4

Manufacturer: Vishay / Siliconix

VIGOR # :: 4923154

Description: IC SWITCH SP3T FAULT 8-MINIQFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG2522DN-T1-E4 PDF

Country of origin: -

Date code: -

DG2522DN-T1-E4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Switch Circuit:	SP3T
Multiplexer/Demultiplexer Circuit:	3:1
Number of Circuits:	1
On-State Resistance (Max):	1.1Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm (Max)
Voltage - Supply, Single (V+):	1.6V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	75ns, 60ns
-3db Bandwidth:	105MHz
Charge Injection:	27pC
Channel Capacitance (CS(off), CD(off)):	51pF
Current - Leakage (IS(off)) (Max):	20nA
Crosstalk:	-64dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-UFQFN
Supplier Device Package:	8-miniQFN (1.4x1.4)
