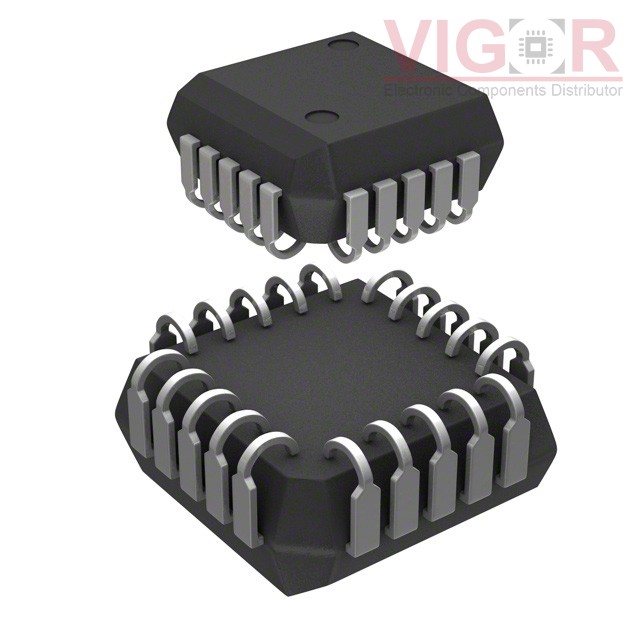

DG540DN

Part No :: DG540DN

Manufacturer: Vishay / Siliconix

VIGOR # :: 4956145

Description: IC SWITCH QUAD SPST 20PLCC

Catalog: Interface - Analog Switches - Special Purpose

DataSheet: DG540DN PDF

Country of origin: -

Date code: -

DG540DN Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Applications:	Video
Multiplexer/Demultiplexer Circuit:	1:1
Switch Circuit:	SPST
Number of Channels:	4
On-State Resistance (Max):	60Ohm
Voltage - Supply, Single (V+):	3V ~ 15V
Voltage - Supply, Dual (V±):	±3V ~ 15V
-3db Bandwidth:	500MHz
Features:	RGB, T-Switch Configuration
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-LCC (J-Lead)
Supplier Device Package:	20-PLCC (9x9)
