DG534ADN

Part No :: DG534ADN

Manufacturer: Vishay / Siliconix

VIGOR # :: 4956223

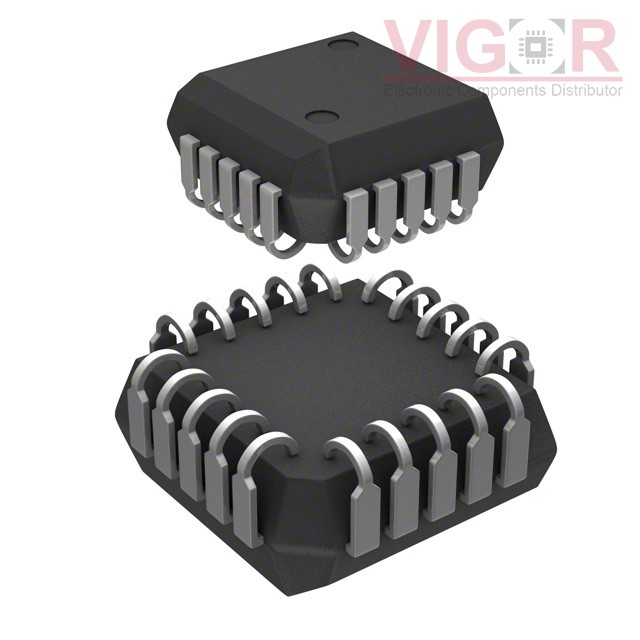

Description: IC AMP/VIDEO/MUX LP 4/8CH 20PLCC

Catalog: Interface - Analog Switches - Special Purpose

DataSheet: DG534ADN PDF

Country of origin: -

Date code: -

DG534ADN Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Applications:	Ultrasound, Video
Multiplexer/Demultiplexer Circuit:	2:1
Switch Circuit:	SPDT
Number of Channels:	2
On-State Resistance (Max):	90Ohm
Voltage - Supply, Single (V+):	10V ~ 21V
Voltage - Supply, Dual (V±):	-
-3db Bandwidth:	500MHz
Features:	T-Switch Configuration
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-LCC (J-Lead)
Supplier Device Package:	20-PLCC (9x9)

Alternative Products

Part Number	Manufacturer & Description	Compare
DG534ADN-E3 Match 100%	Vishay / Siliconix IC AMP/VIDEO/MUX LP 4/8CH 20PLCC	DG534ADN vs DG534ADN-E3
