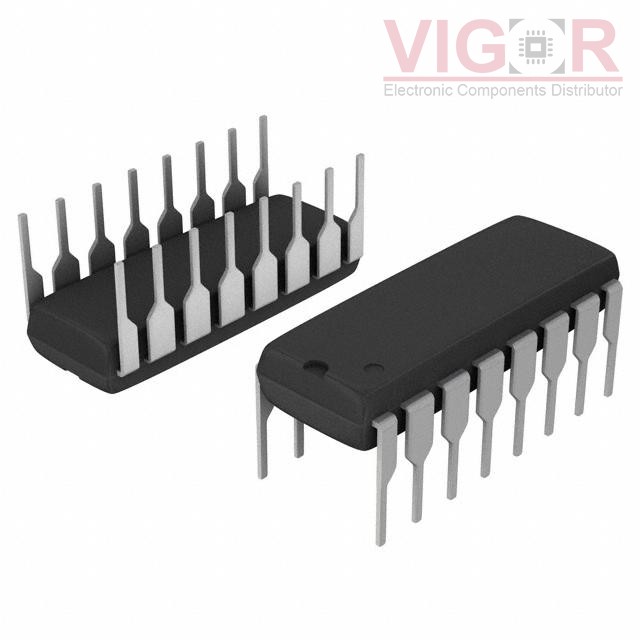

DG541AP

Part No :: DG541AP

Manufacturer: Vishay / Siliconix

VIGOR # :: 4956380

Description: IC SWITCH QUAD SPST 16DIP

Catalog: Interface - Analog Switches - Special Purpose

DataSheet: DG541AP PDF

Country of origin: -

Date code: -

DG541AP Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Applications:	Video
Multiplexer/Demultiplexer Circuit:	1:1
Switch Circuit:	SPST
Number of Channels:	4
On-State Resistance (Max):	60Ohm
Voltage - Supply, Single (V+):	3V ~ 15V
Voltage - Supply, Dual (V±):	±3V ~ 15V
-3db Bandwidth:	500MHz
Features:	RGB, T-Switch Configuration
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-DIP Side Brazed
