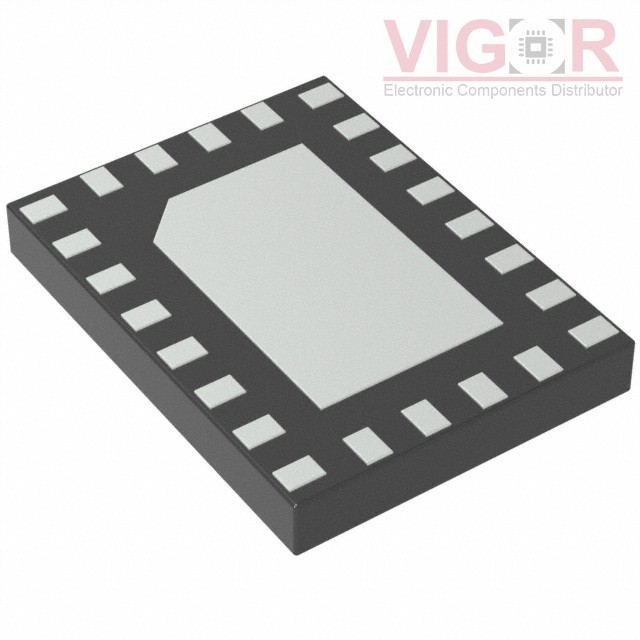

PTN36502AHQX

Part No :: PTN36502AHQX

Manufacturer: NXP Semiconductors

VIGOR # :: 3943120

Description: IC REDRIVER USB 3.1 & DP 1.2 QFN

Catalog: Interface - Signal Buffers, Repeaters, Splitters

DataSheet: PTN36502AHQX PDF

Country of origin: -

Date code: -

PTN36502AHQX Specifications

Type	Description
Series:	*
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Buffer, ReDriver
Applications:	USB Type C
Input:	Differential
Output:	Differential
Data Rate (Max):	5.4Gbps
Number of Channels:	-
Delay Time:	140ps
Signal Conditioning:	Input Equalization, Output De-Emphasis
Capacitance - Input:	10 pF
Voltage - Supply:	1.7V ~ 1.9V
Current - Supply:	225mA
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-XFQFN Exposed Pad
Supplier Device Package:	24-HX2QFN (2.4x3.2)
