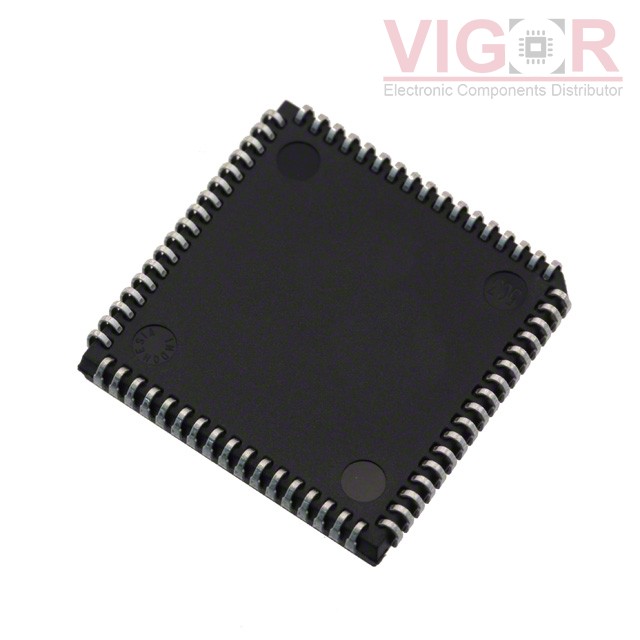

XR82C684J-F

Part No :: XR82C684J-F

Manufacturer: MaxLinear

VIGOR # :: 4895359

Description: IC UART CMOS QUAD 68PLCC

Catalog: Interface - UARTs (Universal Asynchronous Receiver Transmitter)

DataSheet: XR82C684J-F PDF

Country of origin: -

Date code: -

XR82C684J-F Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Features:	Internal Oscillator, Timer/Counter
Number of Channels:	4, QUART
FIFO's:	-
Protocol:	-
Data Rate (Max):	1Mbps
Voltage - Supply:	5V
With Auto Flow Control:	-
With IrDA Encoder/Decoder:	-
With False Start Bit Detection:	-
With Modem Control:	-
Mounting Type:	Surface Mount
Package / Case:	68-LCC (J-Lead)
Supplier Device Package:	68-PLCC (24.23x24.23)

Alternative Products

Part Number	Manufacturer & Description	Compare
XR82C684JTR-F Match 100%	MaxLinear IC UART CMOSS QUAD 68PLCC	XR82C684J-F vs XR82C684JTR-F
XR82C684CJ-F Match 100%	MaxLinear IC UART CMOS QUAD 68PLCC	XR82C684J-F vs XR82C684CJ-F
XR82C684CJTR-F Match 100%	MaxLinear IC UART CMOS QUAD 68PLCC	XR82C684J-F vs XR82C684CJTR-F
