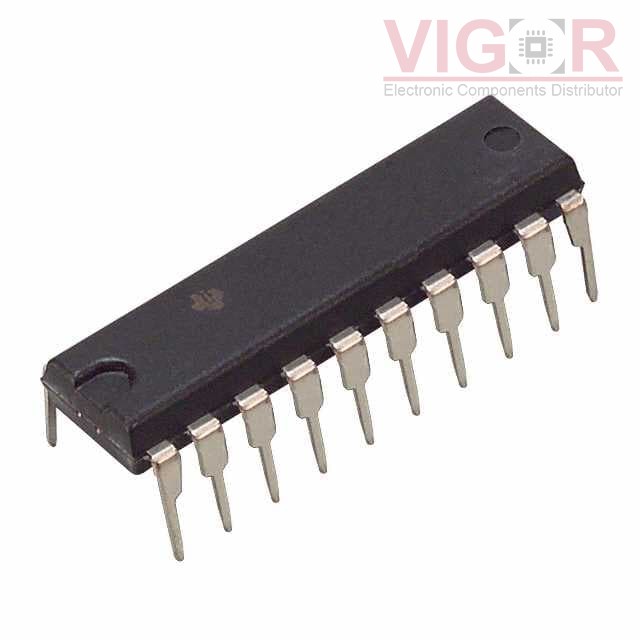

SN74LS540N

Part No :: SN74LS540N

Manufacturer: Texas Instruments

VIGOR # :: 3803684

Description: IC BUFFER INVERT 5.25V 20DIP

Catalog: Logic - Buffers, Drivers, Receivers, Transceivers

DataSheet: SN74LS540N PDF

Country of origin: -

Date code: -

SN74LS540N Specifications

Type	Description
Series:	74LS
Package:	Tube
Part Status:	Active
Logic Type:	Buffer, Inverting
Number of Elements:	1
Number of Bits per Element:	8
Input Type:	-
Output Type:	3-State
Current - Output High, Low:	15mA, 24mA
Voltage - Supply:	4.75V ~ 5.25V
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
