NL27WZ14MU3TCG

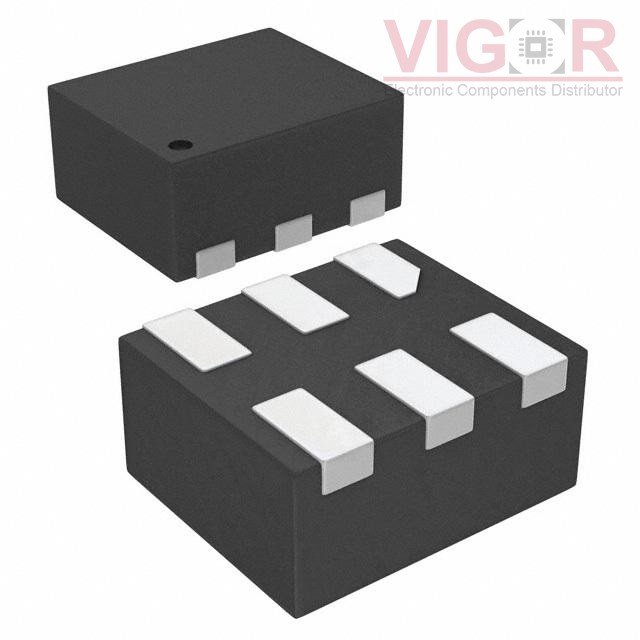

Image is for reference,
please contact us to get the real picture

Part No :: NL27WZ14MU3TCG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC INVERT SCHMITT 2CH 2-IN 6UDFN

Catalog: Logic - Gates and Inverters

DataSheet: NL27WZ14MU3TCG PDF

Availability: 570 pieces

Unit Price: ~~$0.11753~~

Current price of NL27WZ14MU3TCG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NL27WZ14MU3TCG Specifications

Type	Description
Series:	27WZ
Package:	Tape & Reel (TR)
Part Status:	Active
Logic Type:	Inverter
Number of Circuits:	2
Number of Inputs:	2
Features:	Schmitt Trigger
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	0.5V ~ 1.9V
Logic Level - High:	1.4V ~ 3.6V
Max Propagation Delay @ V, Max CL:	4.9ns @ 5V, 50pF
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	6-UDFN (1x1)
Package / Case:	6-UFDFN

Please confirm the specifications of the products when ordering.
