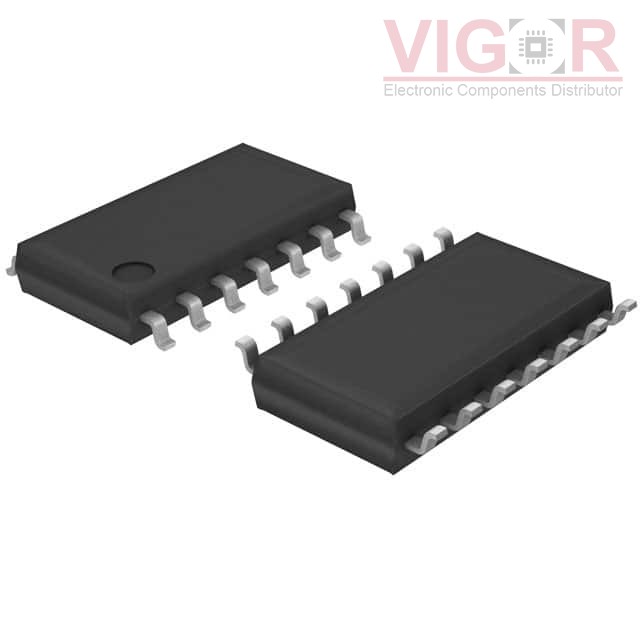

SN74LV20ANSR

Part No :: SN74LV20ANSR

Manufacturer: Texas Instruments

VIGOR # :: 3814176

Description: IC GATE NAND 2CH 4-INP 14SOP

Catalog: Logic - Gates and Inverters

DataSheet: SN74LV20ANSR PDF

Country of origin: -

Date code: -

SN74LV20ANSR Specifications

Type	Description
Series:	74LV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	4
Features:	-
Voltage - Supply:	2V ~ 5.5V
Current - Quiescent (Max):	20 µA
Current - Output High, Low:	12mA, 12mA
Logic Level - Low:	0.5V
Logic Level - High:	1.5V
Max Propagation Delay @ V, Max CL:	7ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOP
Package / Case:	14-SOIC (0.209", 5.30mm Width)
