SN74HCT00ANSR

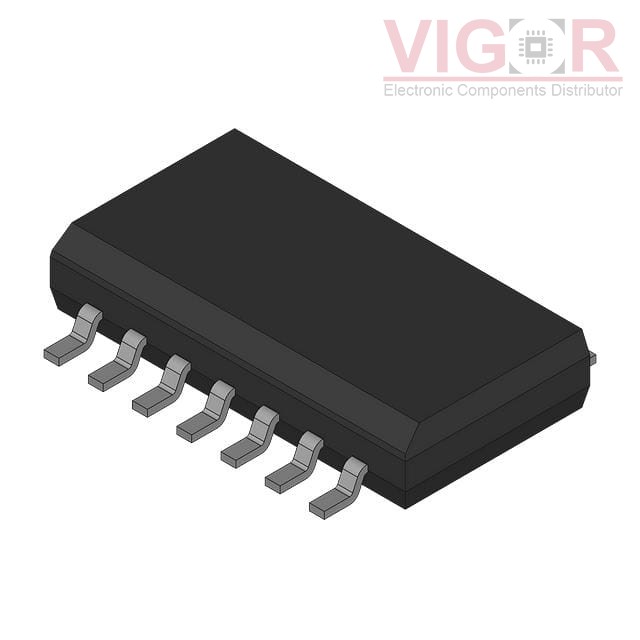

Image is for reference,
please contact us to get the real picture

Part No :: SN74HCT00ANSR

Manufacturer: VIGOR

Description: IC GATE NAND 2CH 4-INP 14SOP

Catalog: Logic - Gates and Inverters

Shipped from: HK warehouse

Expected Shipping Date: Nov 09 - Nov 13 2025

DataSheet: SN74HCT00ANSR PDF

Availability: 22000 pieces

Unit Price: ~~$0.14000~~

Current price of SN74HCT00ANSR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SN74HCT00ANSR Specifications

Type	Description
Series:	74HCT
Package:	Bulk
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	4
Features:	-
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	5.2mA, 5.2mA
Logic Level - Low:	0.3V ~ 1.2V
Logic Level - High:	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL:	20ns @ 6V, 50pF
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOP
Package / Case:	14-SOIC (0.209", 5.30mm Width)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
