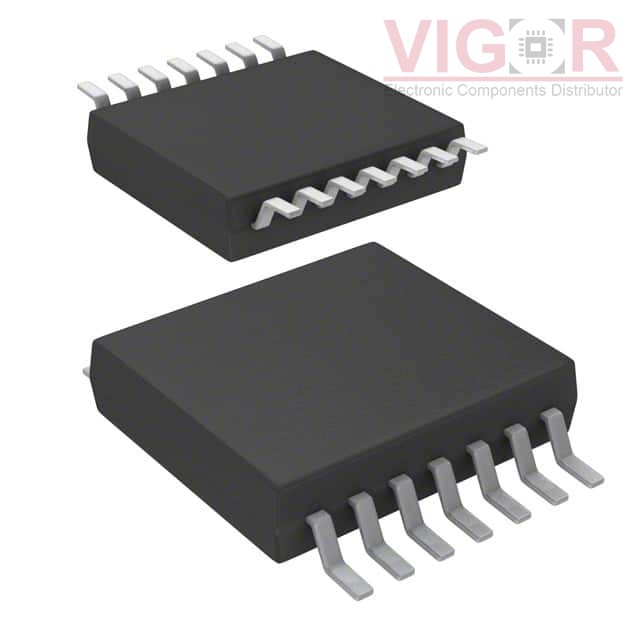

SN74HC20PW

Part No :: SN74HC20PW

Manufacturer: Texas Instruments

VIGOR # :: 3817611

Description: IC GATE NAND 2CH 4-INP 14TSSOP

Catalog: Logic - Gates and Inverters

DataSheet: SN74HC20PW PDF

Country of origin: -

Date code: -

SN74HC20PW Specifications

Type	Description
Series:	74HC
Package:	Tube
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	4
Features:	-
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	5.2mA, 5.2mA
Logic Level - Low:	0.5V ~ 1.8V
Logic Level - High:	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL:	19ns @ 6V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-TSSOP
Package / Case:	14-TSSOP (0.173", 4.40mm Width)
