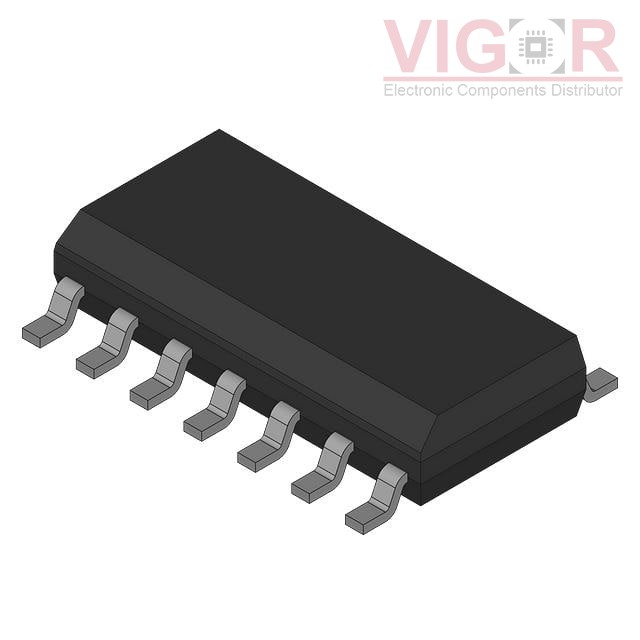

SN74LV02ADG4

Part No :: SN74LV02ADG4

Manufacturer: VIGOR

VIGOR # :: 3817764

Description: IC GATE NOR 4CH 2-INP 14SOIC

Catalog: Logic - Gates and Inverters

DataSheet: SN74LV02ADG4 PDF

Country of origin: -

Date code: -

SN74LV02ADG4 Specifications

Type	Description
Series:	74LV
Package:	Tube
Part Status:	Obsolete
Logic Type:	NOR Gate
Number of Circuits:	4
Number of Inputs:	2
Features:	-
Voltage - Supply:	2V ~ 5.5V
Current - Quiescent (Max):	20 µA
Current - Output High, Low:	12mA, 12mA
Logic Level - Low:	0.5V
Logic Level - High:	1.5V
Max Propagation Delay @ V, Max CL:	7.5ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOIC
Package / Case:	14-SOIC (0.154", 3.90mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74AC08QDRG4Q1 Match 100%	VIGOR IC GATE AND 4CH 2-INP 14SOIC	SN74LV02ADG4 vs SN74AC08QDRG4Q1
SN74AHC32QDRG4Q1 Match 100%	Texas Instruments IC GATE OR 4CH 2-INP 14SOIC	SN74LV02ADG4 vs SN74AHC32QDRG4Q1
74VHC32M Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE OR 4CH 2-INP 14SOIC	SN74LV02ADG4 vs 74VHC32M
SN74LV32ADR Match 100%	Texas Instruments IC GATE OR 4CH 2-INP 14SOIC	SN74LV02ADG4 vs SN74LV32ADR
SN74AC32MDREP Match 100%	VIGOR IC GATE OR 4CH 2-INP 14SOIC	SN74LV02ADG4 vs SN74AC32MDREP
74VHC00M Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND 4CH 2-INP 14SOIC	SN74LV02ADG4 vs 74VHC00M
