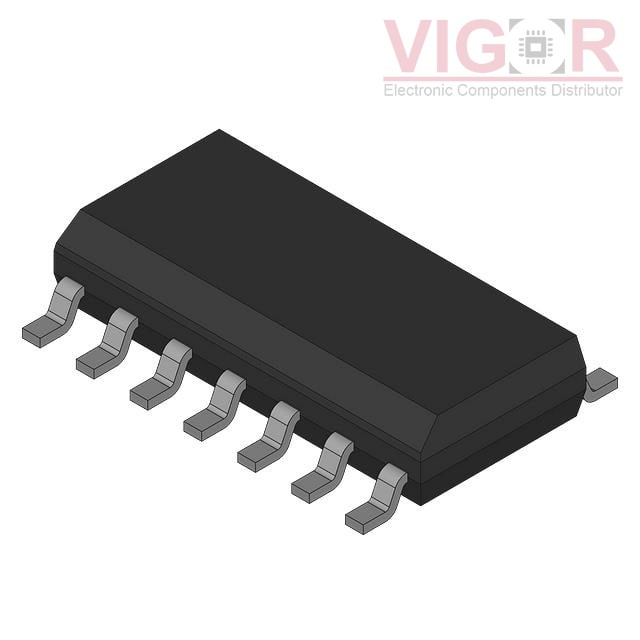

MC14093BDR2

Part No :: MC14093BDR2

Manufacturer: VIGOR

VIGOR # :: 3817822

Description: IC GATE NAND 4CH 2-INP 14SOIC

Catalog: Logic - Gates and Inverters

DataSheet: MC14093BDR2 PDF

Country of origin: -

Date code: -

MC14093BDR2 Specifications

Type	Description
Series:	4000B
Package:	Bulk
Part Status:	Obsolete
Logic Type:	NAND Gate
Number of Circuits:	4
Number of Inputs:	2
Features:	Schmitt Trigger
Voltage - Supply:	3V ~ 18V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	8.8mA, 8.8mA
Logic Level - Low:	0.9V ~ 4V
Logic Level - High:	3.6V ~ 10.8V
Max Propagation Delay @ V, Max CL:	80ns @ 15V, 50pF
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOIC
Package / Case:	14-SOIC (0.154", 3.90mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
MC14001BDG Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NOR 4CH 2-INP 14SOIC	MC14093BDR2 vs MC14001BDG
MC14093BDR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND 4CH 2-INP 14SOIC	MC14093BDR2 vs MC14093BDR2G
NLV14001BDG Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NOR 4CH 2-INP 14SOIC	MC14093BDR2 vs NLV14001BDG
MC14001BDR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NOR 4CH 2-INP 14SOIC	MC14093BDR2 vs MC14001BDR2G
MC14001UBDG Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NOR 4CH 2-INP 14SOIC	MC14093BDR2 vs MC14001UBDG
MC14011BDG Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND 4CH 2-INP 14SOIC	MC14093BDR2 vs MC14011BDG

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 7619

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.0900~~	~~$0.09~~

Current price of MC14093BDR2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

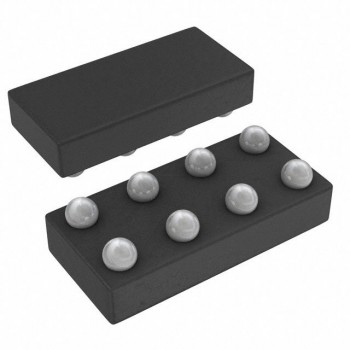

SN74LVC2G02YZAR
