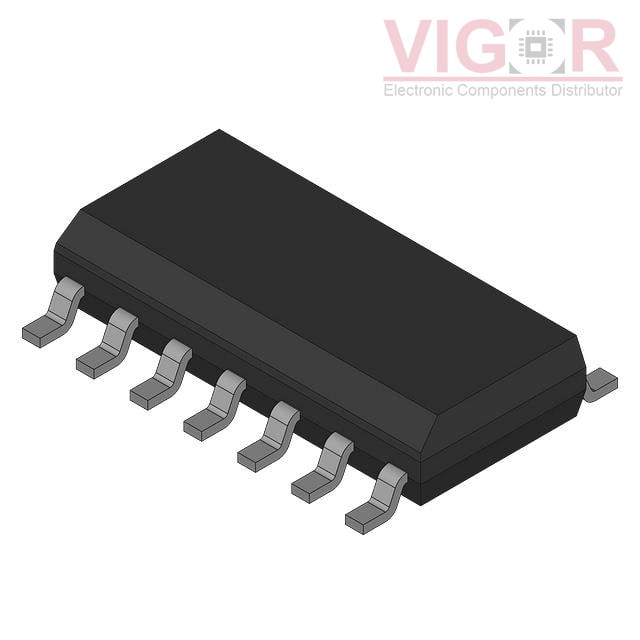

SN74AHC05DG4

Part No :: SN74AHC05DG4

Manufacturer: VIGOR

VIGOR # :: 3818203

Description: IC INVERTER OD 6CH 6-INP 14SOIC

Catalog: Logic - Gates and Inverters

DataSheet: SN74AHC05DG4 PDF

Country of origin: -

Date code: -

SN74AHC05DG4 Specifications

Type	Description
Series:	74AHC
Package:	Tube
Part Status:	Obsolete
Logic Type:	Inverter
Number of Circuits:	6
Number of Inputs:	6
Features:	Open Drain
Voltage - Supply:	2V ~ 5.5V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	-, 8mA
Logic Level - Low:	0.5V ~ 1.65V
Logic Level - High:	1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL:	7.5ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOIC
Package / Case:	14-SOIC (0.154", 3.90mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
MC74VHC04DR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC INVERTER 6CH 6-INP 14SOIC	SN74AHC05DG4 vs MC74VHC04DR2G
SN74AHC04DR Match 100%	Texas Instruments IC INVERTER 6CH 6-INP 14SOIC	SN74AHC05DG4 vs SN74AHC04DR
SN74LV05AD Match 100%	Texas Instruments IC INVERTER OD 6CH 6-INP 14SOIC	SN74AHC05DG4 vs SN74LV05AD
SN74AHC05D Match 100%	Texas Instruments IC INVERTER OD 6CH 6-INP 14SOIC	SN74AHC05DG4 vs SN74AHC05D
SN74AHC04DG4 Match 100%	Texas Instruments IC INVERTER 6CH 6-INP 14SOIC	SN74AHC05DG4 vs SN74AHC04DG4
SN74AHC04MDREP Match 100%	VIGOR IC INVERTER 6CH 6-INP 14SOIC	SN74AHC05DG4 vs SN74AHC04MDREP
