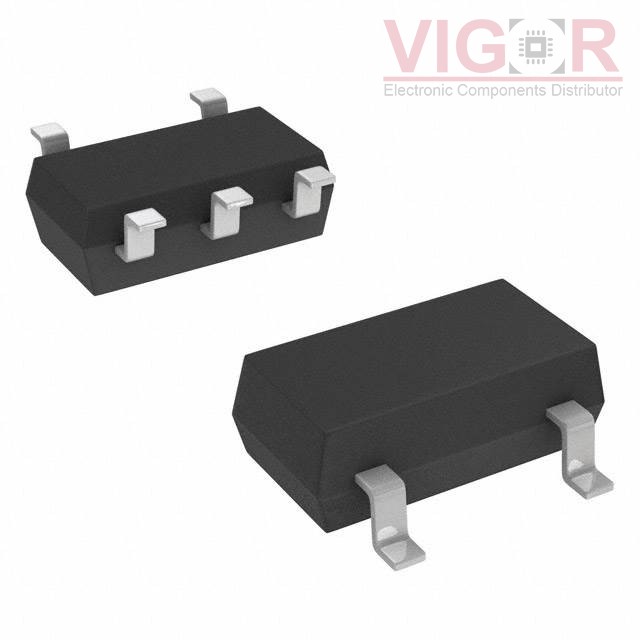

NC7S86P5

Part No :: NC7S86P5

Manufacturer: VIGOR

VIGOR # :: 3819335

Description: XOR GATE, HC/UH SERIES, 1 FUNC,

Catalog: Logic - Gates and Inverters

DataSheet: NC7S86P5 PDF

Country of origin: -

Date code: -

NC7S86P5 Specifications

Type	Description
Series:	7S
Package:	Bulk
Part Status:	Active
Logic Type:	XOR (Exclusive OR)
Number of Circuits:	1
Number of Inputs:	2
Features:	-
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	2.6mA, 2.6mA
Logic Level - Low:	0.5V
Logic Level - High:	1.5V
Max Propagation Delay @ V, Max CL:	17ns @ 6V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	SC-70-5
Package / Case:	5-TSSOP, SC-70-5, SOT-353

Alternative Products

Part Number	Manufacturer & Description	Compare
NC7S08P5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE AND 1CH 2-INP SC70-5	NC7S86P5 vs NC7S08P5X
NC7S02P5 Match 100%	VIGOR NOR GATE, HC/UH SERIES, 1 FUNC,	NC7S86P5 vs NC7S02P5
NC7S00P5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND 1CH 2-INP SC70-5	NC7S86P5 vs NC7S00P5X
NC7S00P5 Match 100%	VIGOR NAND GATE, HC/UH SERIES, 1 FUNC,	NC7S86P5 vs NC7S00P5
NC7S02P5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NOR 1CH 2-INP SC70-5	NC7S86P5 vs NC7S02P5X
NC7S86P5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE XOR 1CH 2-INP SC70-5	NC7S86P5 vs NC7S86P5X
