SN74LS05NSR

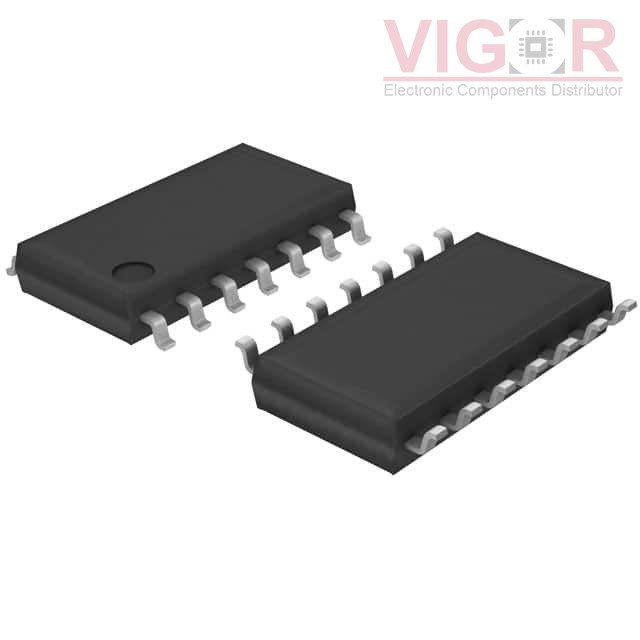

Part No :: SN74LS05NSR

Manufacturer: VIGOR

VIGOR # :: 3819856

Description: IC INVERT OPEN COL 6CH 6IN 14SOP

Catalog: Logic - Gates and Inverters

DataSheet: SN74LS05NSR PDF

Country of origin: -

Date code: -

SN74LS05NSR Specifications

Type	Description
Series:	74LS
Package:	Bulk
Part Status:	Active
Logic Type:	Inverter
Number of Circuits:	6
Number of Inputs:	6
Features:	Open Collector
Voltage - Supply:	4.75V ~ 5.25V
Current - Quiescent (Max):	-
Current - Output High, Low:	-, 8mA
Logic Level - Low:	0.8V
Logic Level - High:	2V
Max Propagation Delay @ V, Max CL:	32ns @ 5V, 15pF
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOP
Package / Case:	14-SOIC (0.209", 5.30mm Width)
