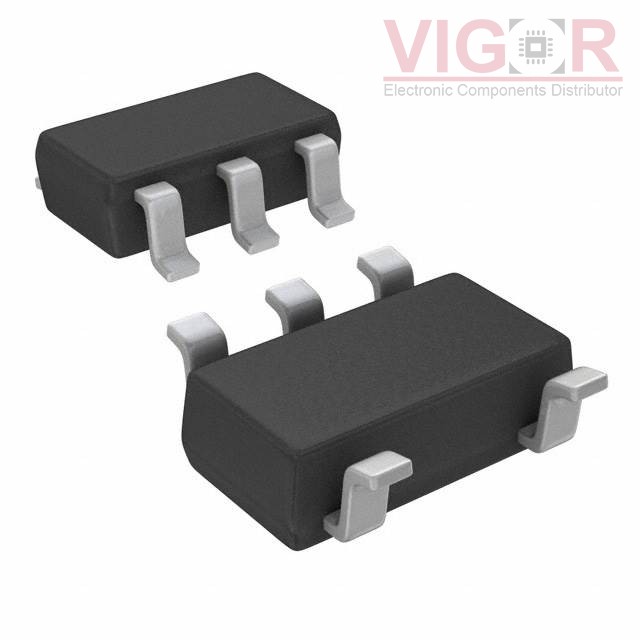

NC7SZ38M5

Part No :: NC7SZ38M5

Manufacturer: VIGOR

VIGOR # :: 3820563

Description: IC GATE NAND OD 1CH 2-IN SOT23-5

Catalog: Logic - Gates and Inverters

DataSheet: NC7SZ38M5 PDF

Country of origin: -

Date code: -

NC7SZ38M5 Specifications

Type	Description
Series:	7SZ
Package:	Bulk
Part Status:	Obsolete
Logic Type:	NAND Gate
Number of Circuits:	1
Number of Inputs:	2
Features:	Open Drain
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	-, 32mA
Logic Level - Low:	-
Logic Level - High:	-
Max Propagation Delay @ V, Max CL:	4.3ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23-5
Package / Case:	SC-74A, SOT-753

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74LVC1G00DBVT Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SOT23-5	NC7SZ38M5 vs SN74LVC1G00DBVT
NC7SZ38M5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND OD 1CH 2-IN SOT23-5	NC7SZ38M5 vs NC7SZ38M5X
SN74LVC1G00DBVR Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SOT23-5	NC7SZ38M5 vs SN74LVC1G00DBVR
SN74LVC1G00DBVTG4 Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SOT23-5	NC7SZ38M5 vs SN74LVC1G00DBVTG4
NC7SZ00M5 Match 100%	VIGOR NAND GATE, LVC/LCX/Z SERIES, 1 F	NC7SZ38M5 vs NC7SZ00M5
SN74LVC1G00DBVRE4 Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SOT23-5	NC7SZ38M5 vs SN74LVC1G00DBVRE4
