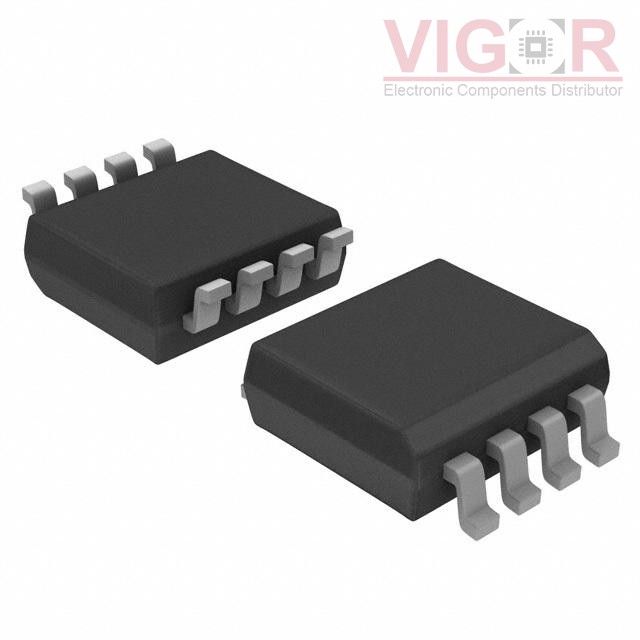

TC7WZ00FK,LJ(CT

Part No :: TC7WZ00FK,LJ(CT

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 3820618

Description: IC GATE NAND 2CH 2-INP US8

Catalog: Logic - Gates and Inverters

DataSheet: TC7WZ00FK,LJ(CT PDF

Country of origin: -

Date code: -

TC7WZ00FK,LJ(CT Specifications

Type	Description
Series:	TC7WZ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	10 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	-
Logic Level - High:	-
Max Propagation Delay @ V, Max CL:	3.6ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	US8
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
NC7WZ00K8X Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND 2CH 2-INP US8	TC7WZ00FK,LJ(CT vs NC7WZ00K8X
NL27WZ00USG Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND 2CH 2-INP US8	TC7WZ00FK,LJ(CT vs NL27WZ00USG
NL27WZ00US Match 100%	VIGOR IC GATE NAND 2CH 2-INP US8	TC7WZ00FK,LJ(CT vs NL27WZ00US

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.4000~~	~~$0.40~~
3000	~~$0.0846~~	~~$253.80~~
6000	~~$0.0799~~	~~$479.40~~
15000	~~$0.0728~~	~~$1 092.75~~
30000	~~$0.0682~~	~~$2 044.50~~
75000	~~$0.0611~~	~~$4 582.50~~
150000	~~$0.0588~~	~~$8 812.50~~

Current price of TC7WZ00FK,LJ(CT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
