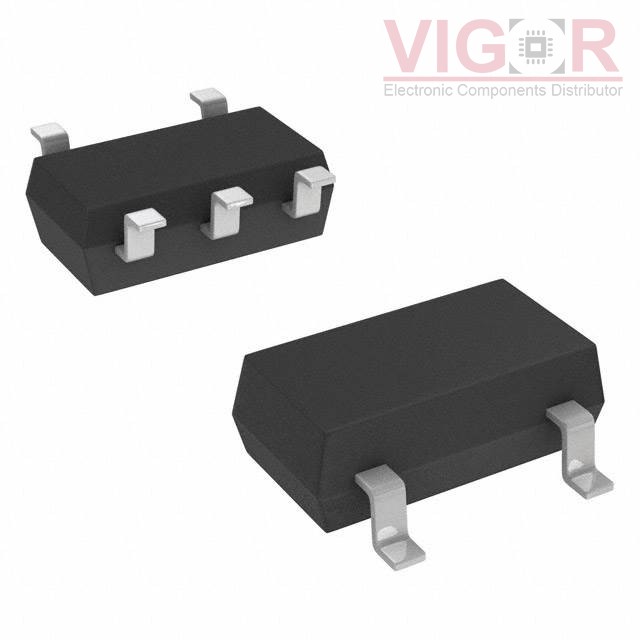

NC7SZ38P5

Part No :: NC7SZ38P5

Manufacturer: VIGOR

VIGOR # :: 3820647

Description: NAND GATE, LVC/LCX/Z SERIES, 1 F

Catalog: Logic - Gates and Inverters

DataSheet: NC7SZ38P5 PDF

Country of origin: -

Date code: -

NC7SZ38P5 Specifications

Type	Description
Series:	7SZ
Package:	Bulk
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	1
Number of Inputs:	2
Features:	Open Drain
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	-, 32mA
Logic Level - Low:	-
Logic Level - High:	-
Max Propagation Delay @ V, Max CL:	4.3ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	SC-70-5
Package / Case:	5-TSSOP, SC-70-5, SOT-353

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74LVC1G00DCKR Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SC70-5	NC7SZ38P5 vs SN74LVC1G00DCKR
SN74LVC1G00DCKRG4 Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SC70-5	NC7SZ38P5 vs SN74LVC1G00DCKRG4
SN74LVC1G00DCKTE4 Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SC70-5	NC7SZ38P5 vs SN74LVC1G00DCKTE4
SN74LVC1G00DCKT Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SC70-5	NC7SZ38P5 vs SN74LVC1G00DCKT
SN74LVC1G00DCKRE4 Match 100%	Texas Instruments IC GATE NAND 1CH 2-INP SC70-5	NC7SZ38P5 vs SN74LVC1G00DCKRE4
NC7SZ38P5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE NAND OD 1CH 2-INP SC70-5	NC7SZ38P5 vs NC7SZ38P5X
