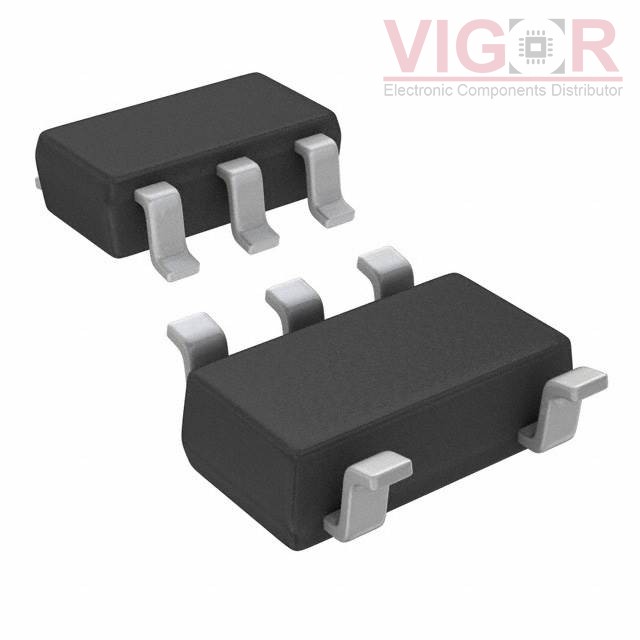

NC7SZ05M5

Part No :: NC7SZ05M5

Manufacturer: VIGOR

VIGOR # :: 3821639

Description: INVERTER, LVC/LCX/Z SERIES, 1 FU

Catalog: Logic - Gates and Inverters

DataSheet: NC7SZ05M5 PDF

Country of origin: -

Date code: -

NC7SZ05M5 Specifications

Type	Description
Series:	7SZ
Package:	Bulk
Part Status:	Active
Logic Type:	Inverter
Number of Circuits:	1
Number of Inputs:	1
Features:	Open Drain
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	-, 32mA
Logic Level - Low:	-
Logic Level - High:	-
Max Propagation Delay @ V, Max CL:	4.3ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23-5
Package / Case:	SC-74A, SOT-753

Alternative Products

Part Number	Manufacturer & Description	Compare
NC7SZ05M5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC INVERTER OD 1CH 1-INP SOT23-5	NC7SZ05M5 vs NC7SZ05M5X
NC7SZ04M5X Match 100%	Sanyo Semiconductor/ON Semiconductor IC INVERTER 1CH 1-INP SOT23-5	NC7SZ05M5 vs NC7SZ04M5X
NC7SZ04M5 Match 100%	VIGOR IC INVERTER 1CH 1-INP SOT23-5	NC7SZ05M5 vs NC7SZ04M5
NC7SZ04M5X_F40 Match 100%	Sanyo Semiconductor/ON Semiconductor IC INVERTER 1CH 1-INP SOT23-5	NC7SZ05M5 vs NC7SZ04M5X_F40
