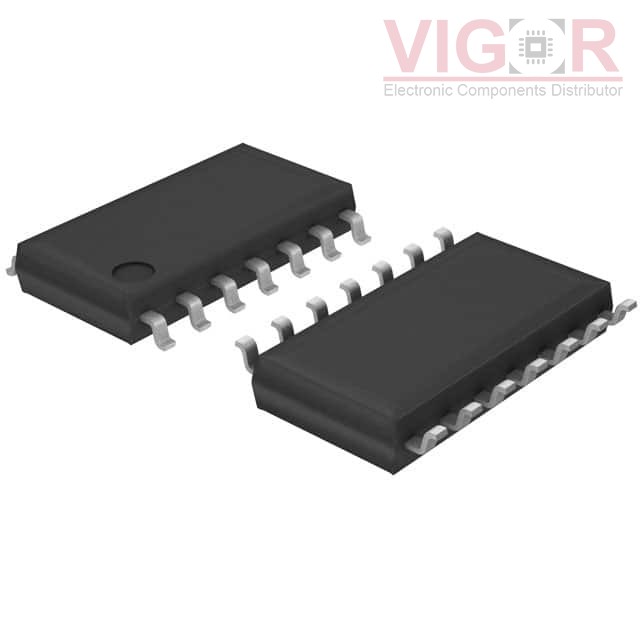

SN74LS136NSR

Part No :: SN74LS136NSR

Manufacturer: VIGOR

VIGOR # :: 3821891

Description: IC GATE XOR OP COL 4CH 2IN 14SOP

Catalog: Logic - Gates and Inverters

DataSheet: SN74LS136NSR PDF

Country of origin: -

Date code: -

SN74LS136NSR Specifications

Type	Description
Series:	74LS
Package:	Bulk
Part Status:	Active
Logic Type:	XOR (Exclusive OR)
Number of Circuits:	4
Number of Inputs:	2
Features:	Open Collector
Voltage - Supply:	4.75V ~ 5.25V
Current - Quiescent (Max):	10 mA
Current - Output High, Low:	-, 8mA
Logic Level - Low:	0.8V
Logic Level - High:	2V
Max Propagation Delay @ V, Max CL:	30ns @ 5V, 15pF
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOP
Package / Case:	14-SOIC (0.209", 5.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74LS266NSR Match 100%	VIGOR IC GATE XNOR OPEN 4CH 2-IN 14SOP	SN74LS136NSR vs SN74LS266NSR
SN74LS86ANSR Match 100%	Texas Instruments IC GATE XOR 4CH 2-INP 14SOP	SN74LS136NSR vs SN74LS86ANSR
SN74LS266NSRE4 Match 100%	Texas Instruments IC GATE XNOR OPEN 4CH 2-IN 14SOP	SN74LS136NSR vs SN74LS266NSRE4
SN74LS266NSRG4 Match 100%	Texas Instruments IC GATE XNOR OPEN 4CH 2-IN 14SOP	SN74LS136NSR vs SN74LS266NSRG4
