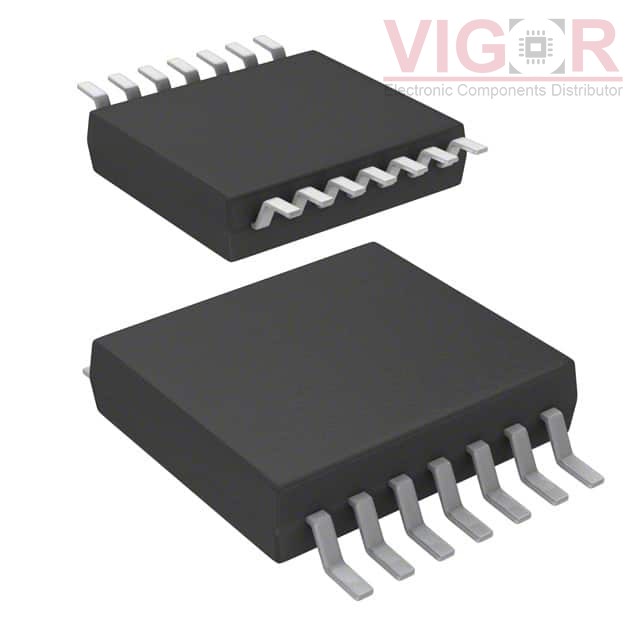

SN74LV20APWTG4

Part No :: SN74LV20APWTG4

Manufacturer: Texas Instruments

VIGOR # :: 4884669

Description: IC GATE NAND 2CH 4-INP 14TSSOP

Catalog: Logic - Gates and Inverters

DataSheet: SN74LV20APWTG4 PDF

Country of origin: -

Date code: -

SN74LV20APWTG4 Specifications

Type	Description
Series:	74LV
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	4
Features:	-
Voltage - Supply:	2V ~ 5.5V
Current - Quiescent (Max):	20 µA
Current - Output High, Low:	12mA, 12mA
Logic Level - Low:	0.5V
Logic Level - High:	1.5V
Max Propagation Delay @ V, Max CL:	7ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-TSSOP
Package / Case:	14-TSSOP (0.173", 4.40mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74LV21APWR Match 100%	Texas Instruments IC GATE AND 2CH 4-INP 14TSSOP	SN74LV20APWTG4 vs SN74LV21APWR
SN74LV20APWR Match 100%	Texas Instruments IC GATE NAND 2CH 4-INP 14TSSOP	SN74LV20APWTG4 vs SN74LV20APWR
SN74LV21APWRG4 Match 100%	Texas Instruments IC GATE AND 2CH 4-INP 14TSSOP	SN74LV20APWTG4 vs SN74LV21APWRG4
SN74LV21APW Match 100%	Texas Instruments IC GATE AND 2CH 4-INP 14TSSOP	SN74LV20APWTG4 vs SN74LV21APW
SN74LV20APWTE4 Match 100%	Texas Instruments IC GATE NAND 2CH 4-INP 14TSSOP	SN74LV20APWTG4 vs SN74LV20APWTE4
SN74LV21APWTE4 Match 100%	Texas Instruments IC GATE AND 2CH 4-INP 14TSSOP	SN74LV20APWTG4 vs SN74LV21APWTE4
