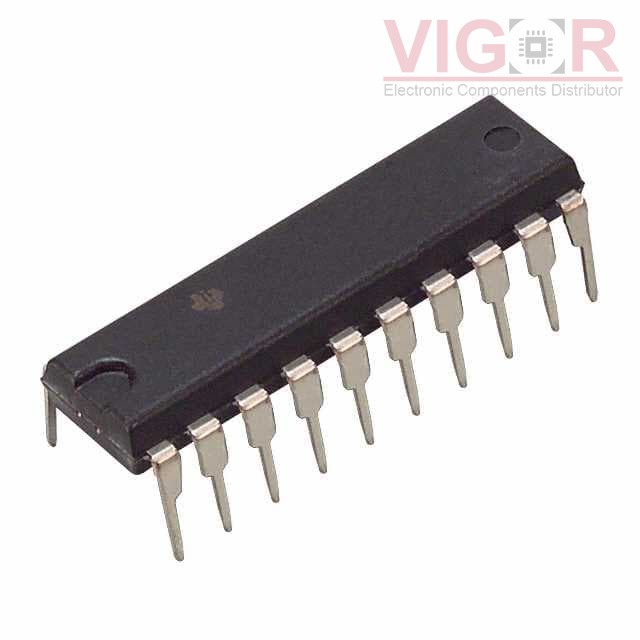

SN74ALS805ANG4

Part No :: SN74ALS805ANG4

Manufacturer: Texas Instruments

VIGOR # :: 4884998

Description: IC GATE NOR 6CH 2-INP 20DIP

Catalog: Logic - Gates and Inverters

DataSheet: SN74ALS805ANG4 PDF

Country of origin: -

Date code: -

SN74ALS805ANG4 Specifications

Type	Description
Series:	74ALS
Package:	Tube
Part Status:	Obsolete
Logic Type:	NOR Gate
Number of Circuits:	6
Number of Inputs:	2
Features:	-
Voltage - Supply:	4.5V ~ 5.5V
Current - Quiescent (Max):	-
Current - Output High, Low:	15mA, 24mA
Logic Level - Low:	0.8V
Logic Level - High:	2V
Max Propagation Delay @ V, Max CL:	8ns @ 5V, 50pF
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Through Hole
Supplier Device Package:	20-PDIP
Package / Case:	20-DIP (0.300", 7.62mm)
