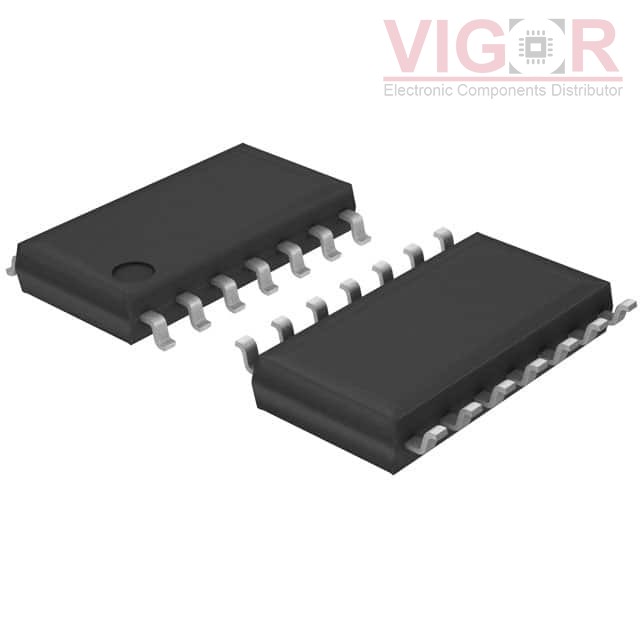

SN74S86NSR

Part No :: SN74S86NSR

Manufacturer: Texas Instruments

VIGOR # :: 4885203

Description: IC GATE XOR 4CH 2-INP 14SOP

Catalog: Logic - Gates and Inverters

DataSheet: SN74S86NSR PDF

Country of origin: -

Date code: -

SN74S86NSR Specifications

Type	Description
Series:	74S
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Logic Type:	XOR (Exclusive OR)
Number of Circuits:	4
Number of Inputs:	2
Features:	-
Voltage - Supply:	4.75V ~ 5.25V
Current - Quiescent (Max):	-
Current - Output High, Low:	1mA, 20mA
Logic Level - Low:	0.8V
Logic Level - High:	2V
Max Propagation Delay @ V, Max CL:	10.5ns @ 5V, 15pF
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOP
Package / Case:	14-SOIC (0.209", 5.30mm Width)
