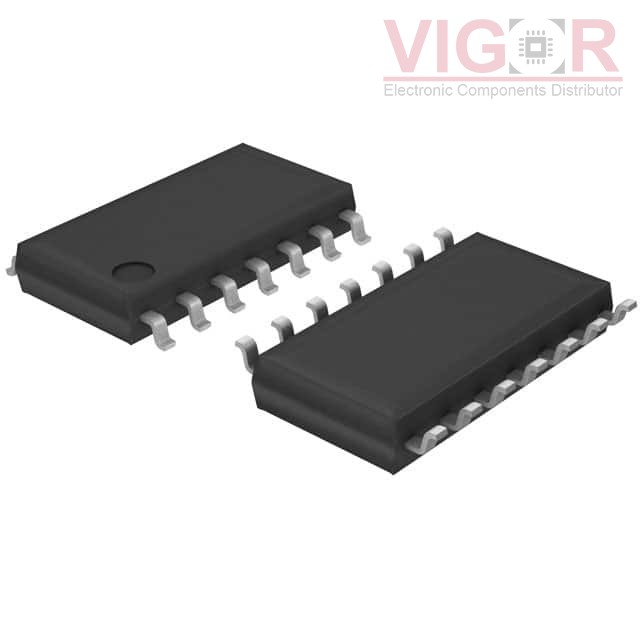

SN74HC7002NSR

Part No :: SN74HC7002NSR

Manufacturer: Texas Instruments

VIGOR # :: 4885485

Description: IC GATE NOR SCHMIT 4CH 2IN 14SOP

Catalog: Logic - Gates and Inverters

DataSheet: SN74HC7002NSR PDF

Country of origin: -

Date code: -

SN74HC7002NSR Specifications

Type	Description
Series:	74HC
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Logic Type:	NOR Gate
Number of Circuits:	4
Number of Inputs:	2
Features:	Schmitt Trigger
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	5.2mA, 5.2mA
Logic Level - Low:	0.3V ~ 1.2V
Logic Level - High:	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL:	22ns @ 6V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SOP
Package / Case:	14-SOIC (0.209", 5.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74HC7001NSR Match 100%	Texas Instruments IC GATE AND SCHMIT 4CH 2IN 14SOP	SN74HC7002NSR vs SN74HC7001NSR
SN74HC7032NSRG4 Match 100%	Texas Instruments IC GATE OR SCHMITT 4CH 2IN 14SOP	SN74HC7002NSR vs SN74HC7032NSRG4
SN74HC7032NSRE4 Match 100%	Texas Instruments IC GATE OR SCHMITT 4CH 2IN 14SOP	SN74HC7002NSR vs SN74HC7032NSRE4
SN74HC7002NSRG4 Match 100%	Texas Instruments IC GATE NOR SCHMIT 4CH 2IN 14SOP	SN74HC7002NSR vs SN74HC7002NSRG4
SN74HC7002NSRE4 Match 100%	Texas Instruments IC GATE NOR SCHMIT 4CH 2IN 14SOP	SN74HC7002NSR vs SN74HC7002NSRE4
SN74HC7032NSR Match 100%	Texas Instruments IC GATE OR SCHMITT 4CH 2IN 14SOP	SN74HC7002NSR vs SN74HC7032NSR
