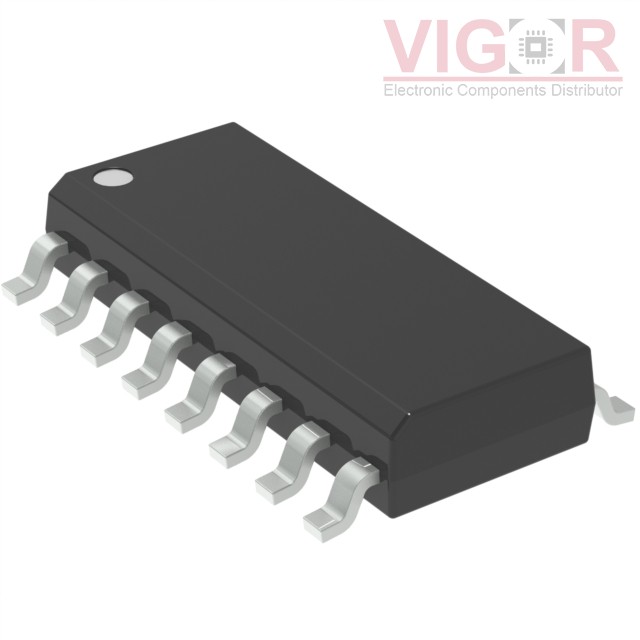

MC14504BDG

Part No :: MC14504BDG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3885286

Description: IC TRNSLTR UNIDIRECTIONAL 16SOIC

Catalog: Logic - Translators, Level Shifters

DataSheet: MC14504BDG PDF

Country of origin: -

Date code: -

MC14504BDG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Translator Type:	Voltage Level
Channel Type:	Unidirectional
Number of Circuits:	1
Channels per Circuit:	6
Voltage - VCCA:	3 V ~ 18.0 V
Voltage - VCCB:	3 V ~ 18.0 V
Input Signal:	-
Output Signal:	-
Output Type:	Non-Inverted
Data Rate:	-
Operating Temperature:	-55°C ~ 125°C (TA)
Features:	-
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC

Alternative Products

Part Number	Manufacturer & Description	Compare
NLV14504BDG Match 100%	Sanyo Semiconductor/ON Semiconductor IC TRNSLTR UNIDIRECTIONAL 16SOIC	MC14504BDG vs NLV14504BDG
CD4504BME4 Match 100%	Texas Instruments IC TRNSLTR UNIDIRECTIONAL 16SOIC	MC14504BDG vs CD4504BME4
CD4504BM96 Match 100%	Texas Instruments IC TRNSLTR UNIDIRECTIONAL 16SOIC	MC14504BDG vs CD4504BM96
CD4504BM Match 100%	Texas Instruments IC TRNSLTR UNIDIRECTIONAL 16SOIC	MC14504BDG vs CD4504BM
NLV14504BDR2G Match 100%	VIGOR TTL/CMOS TO CMOS TRANSLATOR, CMO	MC14504BDG vs NLV14504BDR2G
CD4504BMG4 Match 100%	VIGOR CD4504B CMOS HEX VOLTAGE-LEVEL S	MC14504BDG vs CD4504BMG4
