NCP1336BDR2G

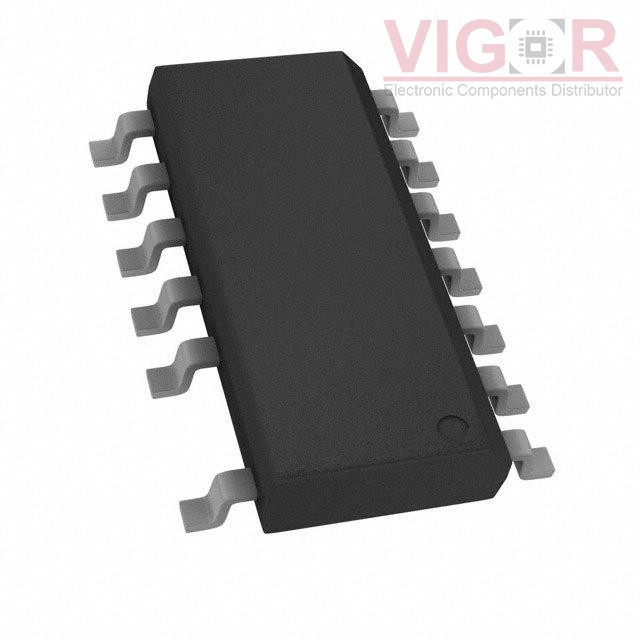

Image is for reference,
please contact us to get the real picture

Part No :: NCP1336BDR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC REG CTRLR FLYBK ISO PWM

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: NCP1336BDR2G PDF

Availability: 176 pieces

Unit Price: ~~$1.26000~~

Current price of NCP1336BDR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NCP1336BDR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Flyback
Voltage - Start Up:	15 V
Voltage - Supply (Vcc/Vdd):	9V ~ 28V
Duty Cycle:	-
Frequency - Switching:	-
Power (Watts):	-
Fault Protection:	Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	14-SOIC (0.154", 3.90mm Width), 13 Leads
Supplier Device Package:	14-SOIC
Mounting Type:	Surface Mount
