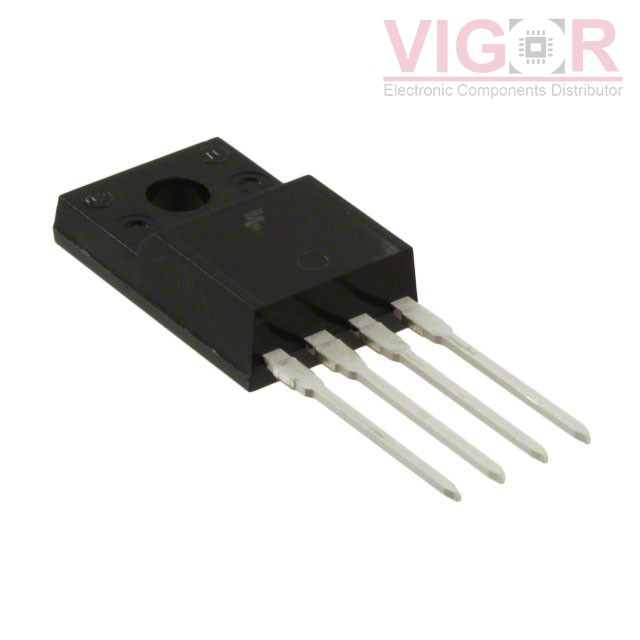

KA1M0565RTU

Part No :: KA1M0565RTU

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3931081

Description: IC FPS SWITCH DVDP/STB TO-220-4

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: KA1M0565RTU PDF

Country of origin: -

Date code: -

KA1M0565RTU Specifications

Type	Description
Series:	FPS™
Package:	Tube
Part Status:	Not For New Designs
Output Isolation:	Non-Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	650V
Topology:	Flyback, Forward
Voltage - Start Up:	15 V
Voltage - Supply (Vcc/Vdd):	10V ~ 30V
Duty Cycle:	77%
Frequency - Switching:	67kHz
Power (Watts):	-
Fault Protection:	Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:	-
Operating Temperature:	-25°C ~ 85°C (TA)
Package / Case:	TO-220-4 Full Pack
Supplier Device Package:	TO-220F-4L
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
KA5M0280RTU Match 93%	VIGOR SWITCHING REGULATOR	KA1M0565RTU vs KA5M0280RTU
KA1H0165RTU Match 80%	VIGOR IC FPS SW AUXILIARY TO-220F-4	KA1M0565RTU vs KA1H0165RTU
KA5M0265RYDTU Match 100%	VIGOR 8A, PZFM4	KA1M0565RTU vs KA5M0265RYDTU
KA5M0265RTU Match 100%	VIGOR SWITCHING REGULATOR	KA1M0565RTU vs KA5M0265RTU
KA5H0165RTU Match 80%	Sanyo Semiconductor/ON Semiconductor IC FPS SWITCH AUXILIARY TO220F-4	KA1M0565RTU vs KA5H0165RTU
KA5H0280RTU Match 72%	Sanyo Semiconductor/ON Semiconductor IC SWIT PWM CM OVP UVLO HV TO220	KA1M0565RTU vs KA5H0280RTU

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 370

Shipped from

HK warehouse

Expected Shipping Date

Jul 29 - Aug 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.2400~~	~~$2.24~~
10	~~$2.0102~~	~~$20.10~~
100	~~$1.6155~~	~~$161.55~~
500	~~$1.3273~~	~~$663.65~~
1000	~~$1.0998~~	~~$1 099.76~~

Current price of KA1M0565RTU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
